X400

Tesla Part Number
1614532-00-A
Connector
AMP 2309873-1
Color
BK

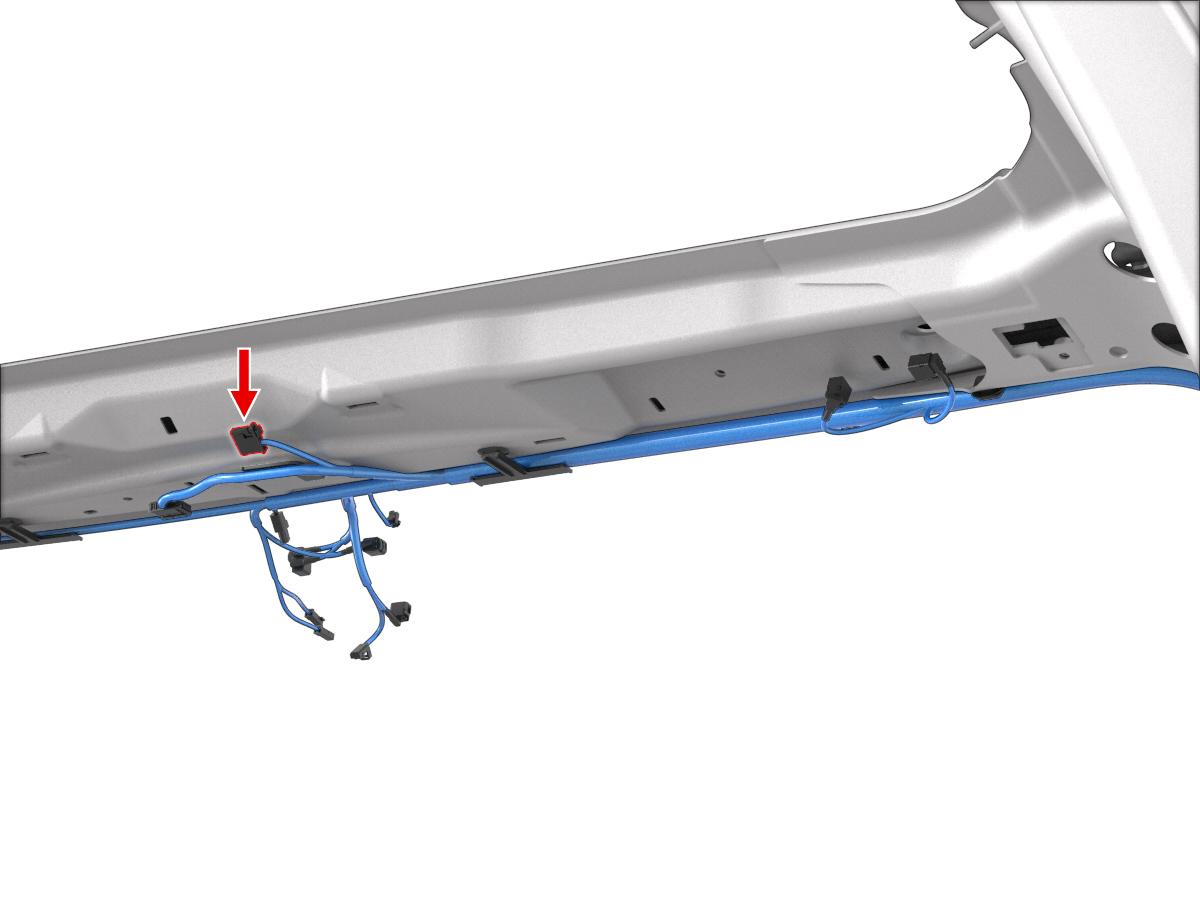

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
3AMP2-1703930-10.50x0.40FRD0.35X060A26
4AMP2-1703930-10.50x0.40FBK0.35G6401
5AMP2-1703930-10.50x0.40FBU0.35X978F13
6AMP2-1703930-10.50x0.40FBU/WH0.35X978F12
7AMP2-1703930-10.50x0.40FTN0.35X0524
8AMP2-1703930-10.50x0.40FVT0.35X05219
