X441

Tesla Part Number
1015004-00-B
Connector
DELPHI 13649797
Color
BK

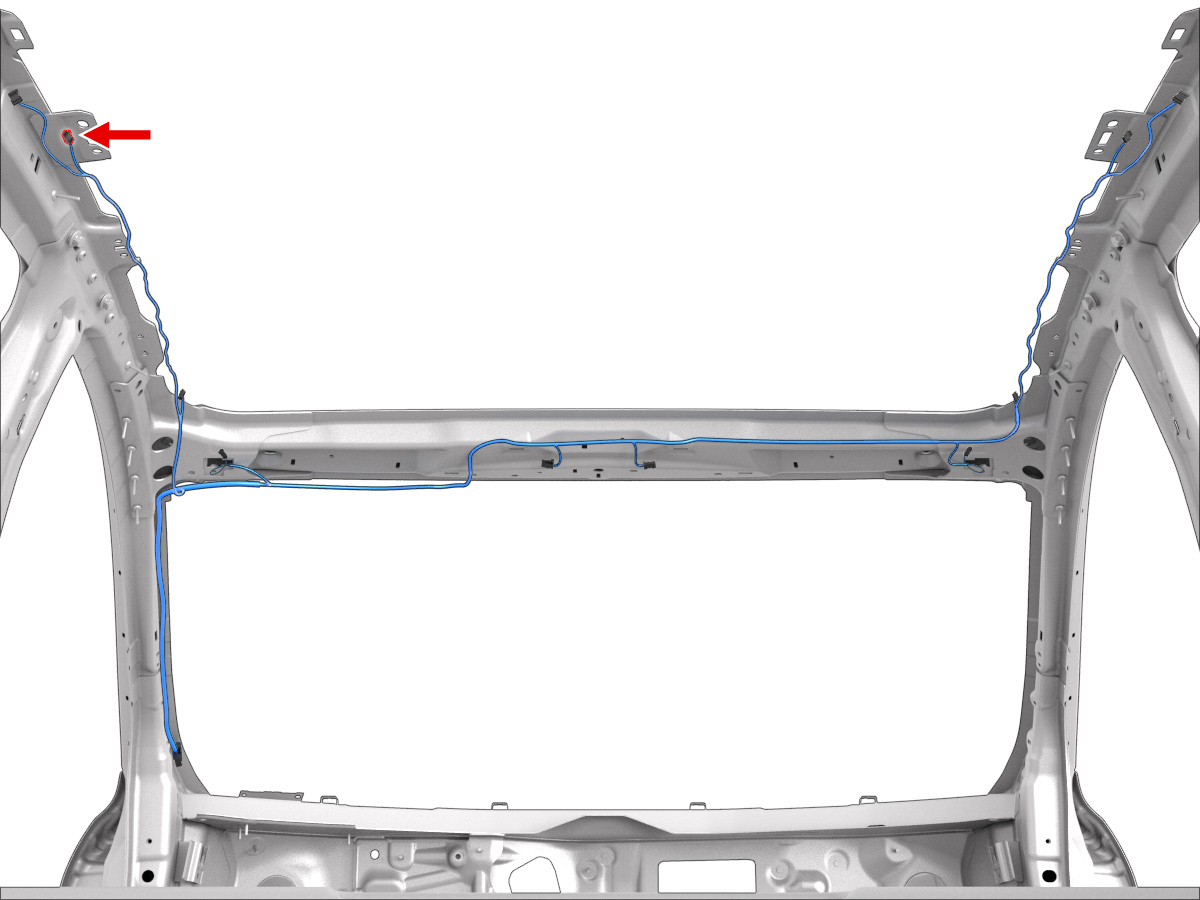

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI135806350.64x0.64FBU0.75X968F14
2DELPHI135806350.64x0.64FBN0.75X968F26
