X446

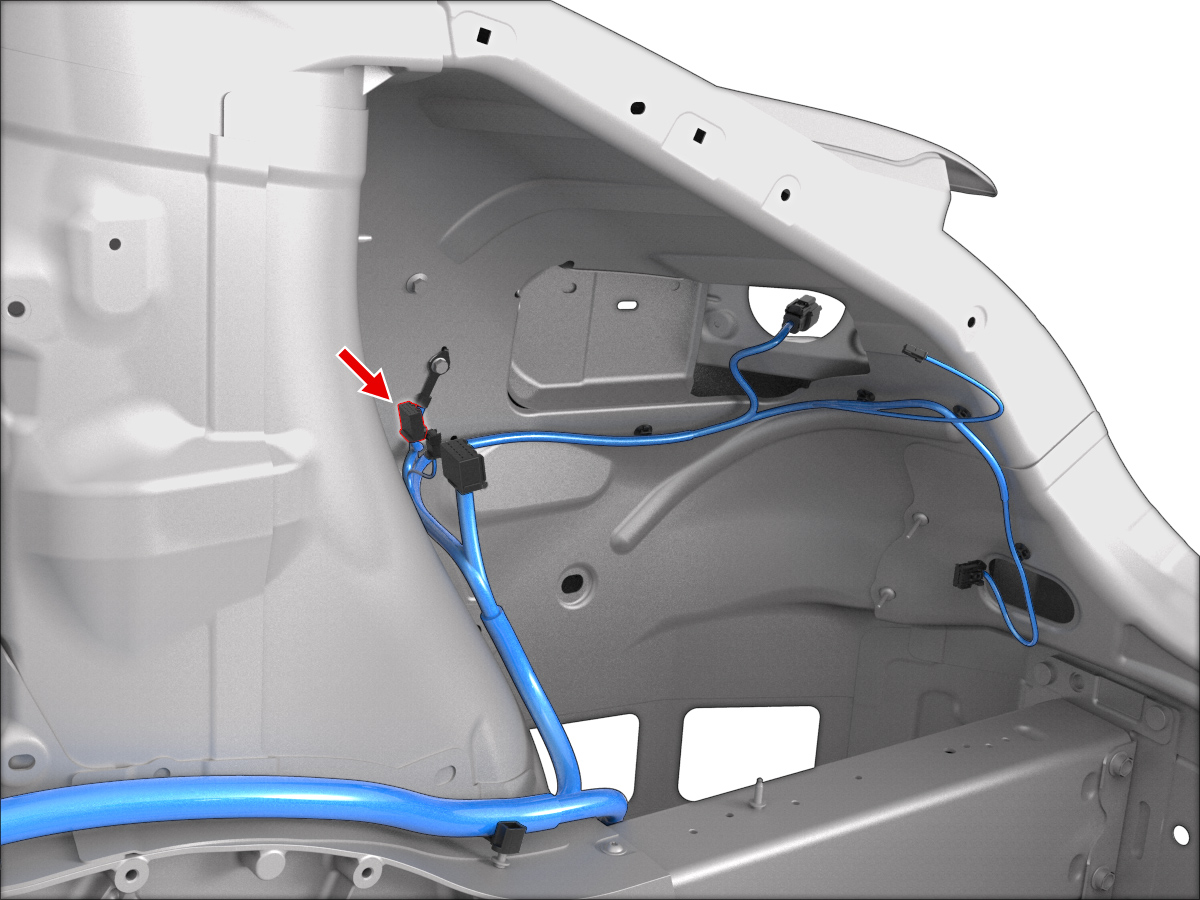

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0214 | 1.5x0.64F | BN | 1.50 | X976M | 20 | ||
| 2 | SUMITOMO | 8240-0214 | 1.5x0.64F | YE | 1.50 | X976M | 10 | ||
| 3 | SUMITOMO | 8240-0214 | 1.5x0.64F | GN | 1.50 | X946M | 1 | ||
| 4 | SUMITOMO | 8240-0214 | 1.5x0.64F | BN | 1.50 | X946M | 15 | ||
| 5 | SUMITOMO | 8240-0213 | 1.5x0.64F | YE | 0.75 | X922M | 15 | ||
| 6 | SUMITOMO | 8240-0213 | 1.5x0.64F | BU | 0.75 | X922M | 14 | ||
| 7 | unused | ||||||||
| 8 | unused | ||||||||
| 9 | unused | ||||||||
| 10 | unused | ||||||||
| 11 | SUMITOMO | 8240-0213 | 1.5x0.64F | GN | 0.75 | X922M | 7 | ||
| 12 | SUMITOMO | 8240-0213 | 1.5x0.64F | VT | 0.75 | X922M | 6 | ||
