X477

Tesla Part Number
1768314-00-A
Connector
AMPHENOL 10155504-A006LF
Color
BK

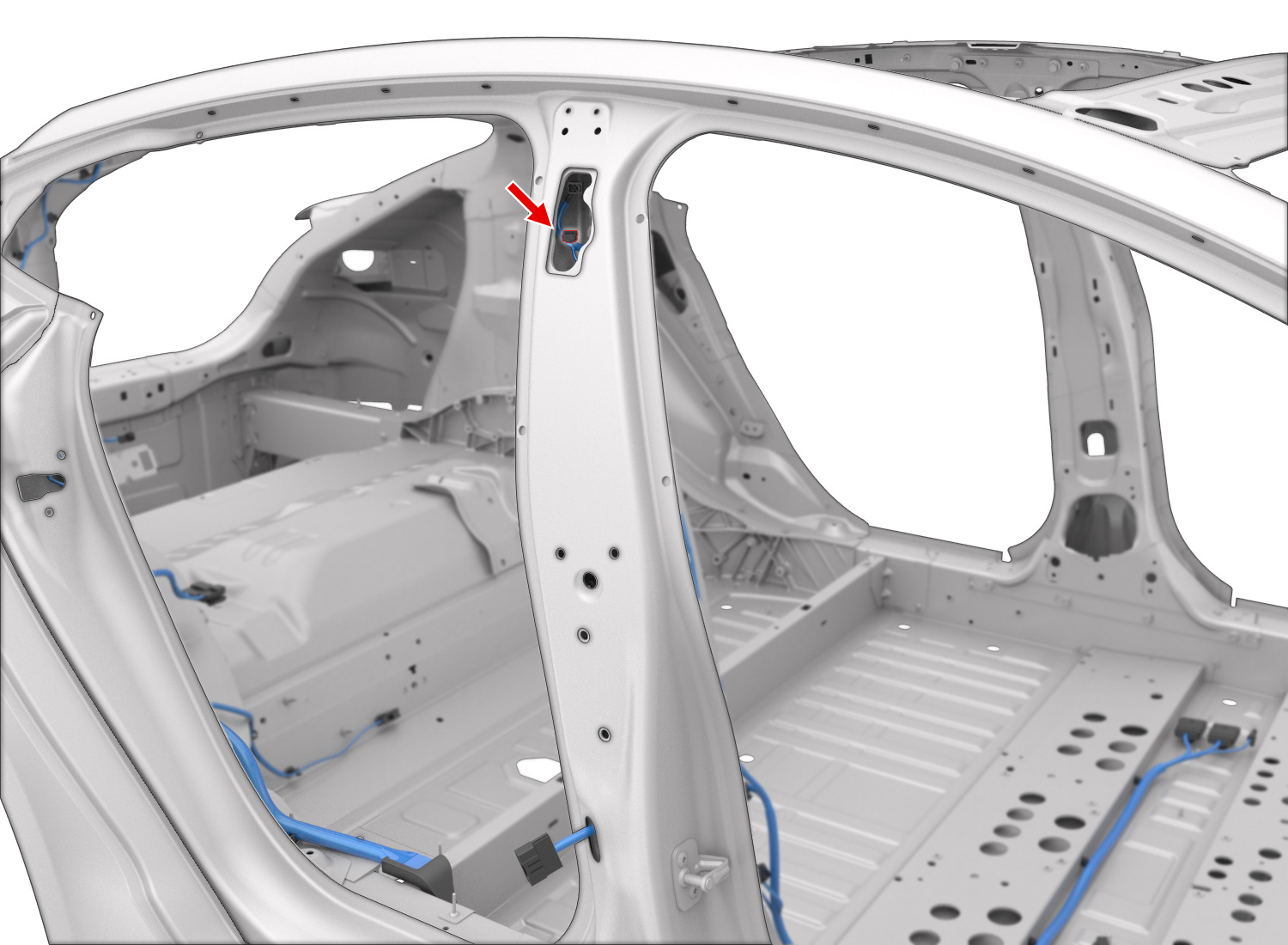

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMPHENOL10155447-111LF1.72x0.9FRD0.35X060B7
2AMPHENOL10155447-111LF1.72x0.9FBU0.35X05142
3AMPHENOL10155447-111LF1.72x0.9FGN0.35X48813
4unused
5AMPHENOL10155447-111LF1.72x0.9FBK0.35G6401
6AMPHENOL10155447-111LF1.72x0.9FWH0.35X48815
