X478

Tesla Part Number
1768314-00-A
Connector
AMPHENOL 10155504-A006LF
Color
BK

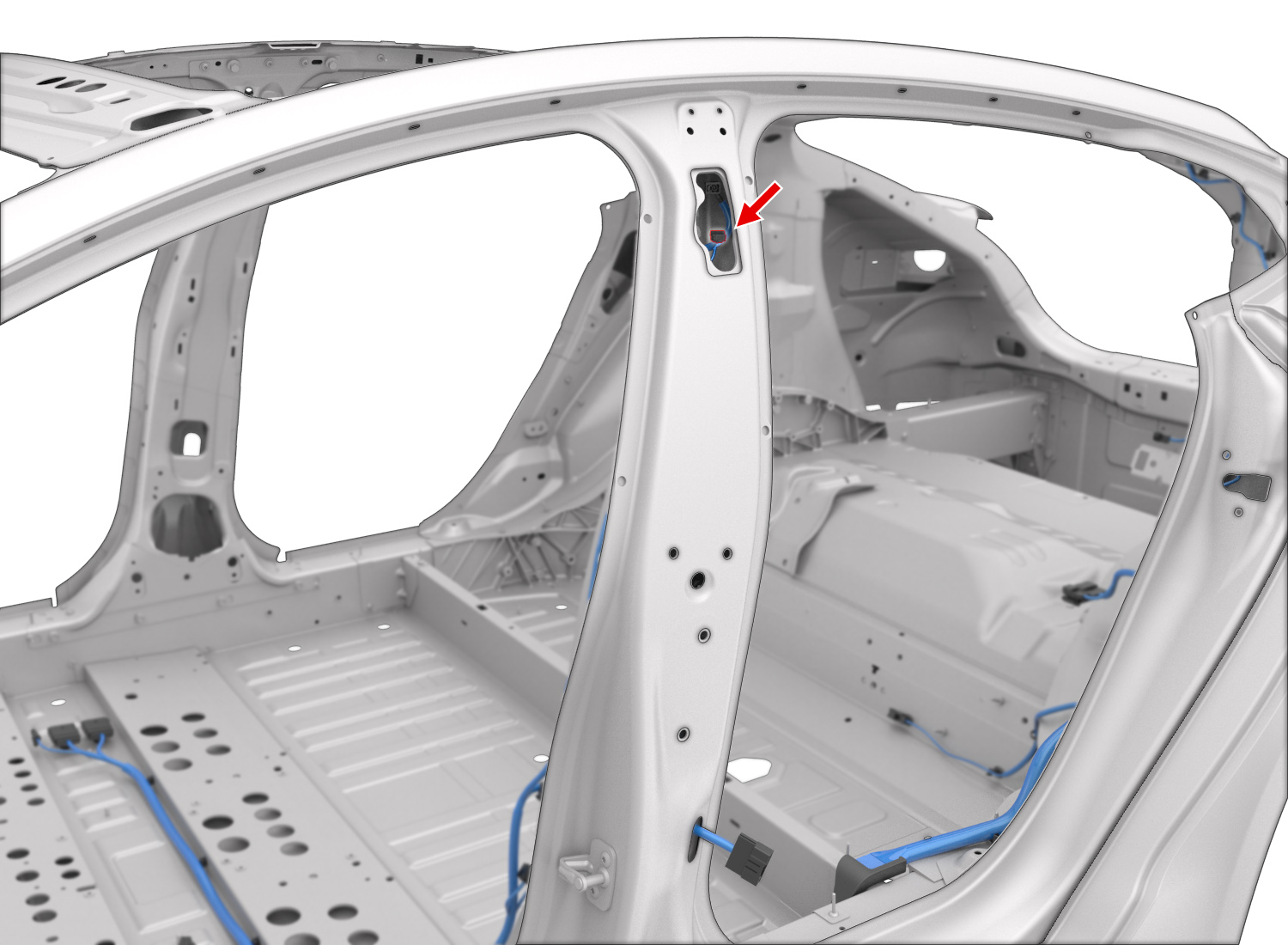

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMPHENOL10155447-111LF1.72x0.9FRD0.35X03229
2AMPHENOL10155447-111LF1.72x0.9FVT0.35X0325
3AMPHENOL10155447-111LF1.72x0.9FYE0.35X988M2
4unused
5AMPHENOL10155447-111LF1.72x0.9FBK0.35G6601
6AMPHENOL10155447-111LF1.72x0.9FGN0.35X988M1
