X488

Tesla Part Number

1100844-00-A

Connector

AMP 2141404-1

Color

BK

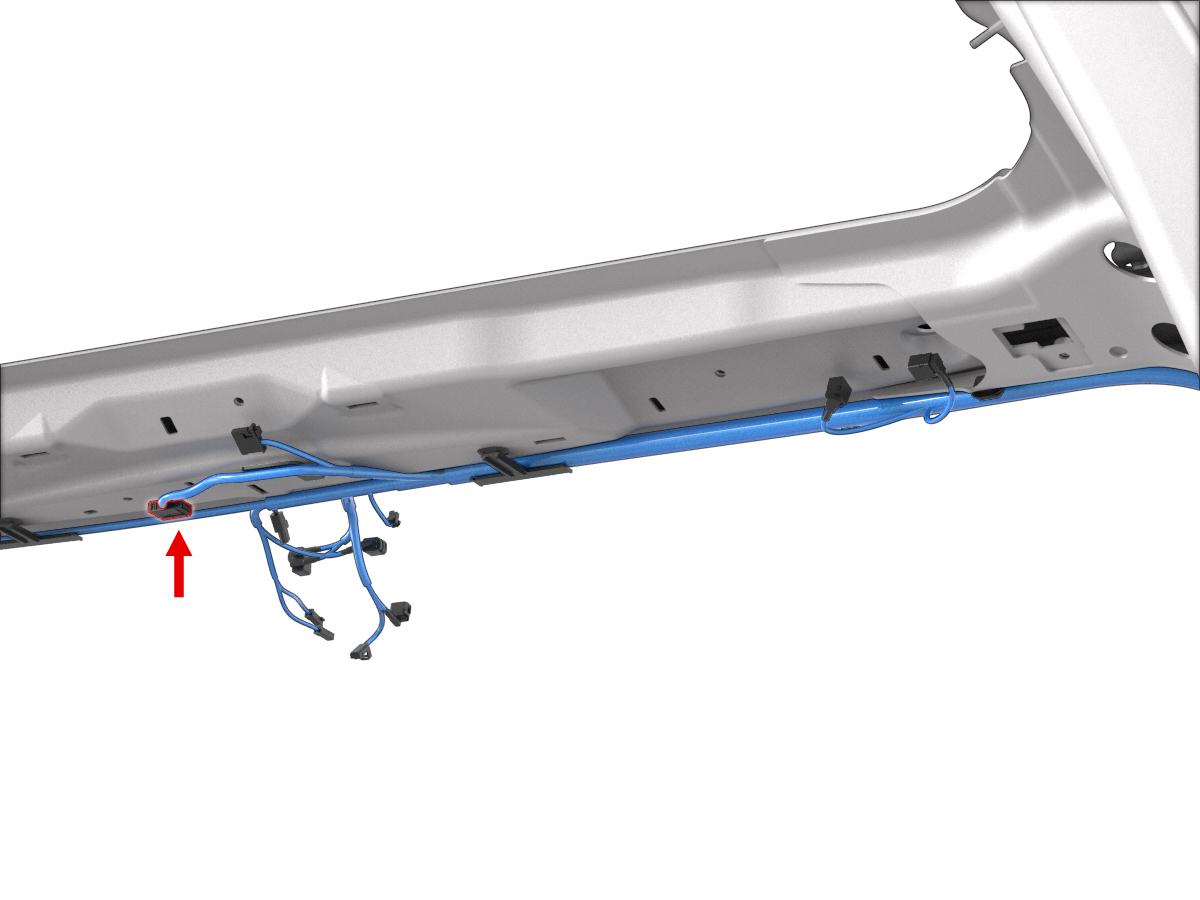

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	2-1703930-1	0.50x0.40F	YE	0.35			X052	22
2	unused
3	AMP	2-1703930-1	0.50x0.40F	BK	0.35			G640	1
4	unused
5	AMP	2-1703930-1	0.50x0.40F	TN	0.35			X052	5
6	AMP	2-1703930-1	0.50x0.40F	GY	0.35			X988F	6
7	AMP	2-1703930-1	0.50x0.40F	VT	0.35			X052	20
8	AMP	2-1703930-1	0.50x0.40F	GN	0.35			X988F	5
9	AMP	2-1703930-1	0.50x0.40F	BN	0.35			X060A	4
10	AMP	2-1703930-1	0.50x0.40F	BU	0.35			X481	1
11	AMP	2-1703930-1	0.50x0.40F	BN/WH	0.35			X060A	17
12	AMP	2-1703930-1	0.50x0.40F	WH	0.35			X481	2
13	AMP	2-1703930-1	0.50x0.40F	GN	0.35			X477	3
14	AMP	2-1703930-1	0.50x0.40F	GY	0.35			X978F	2
15	AMP	2-1703930-1	0.50x0.40F	WH	0.35			X477	6
16	AMP	2-1703930-1	0.50x0.40F	VT	0.35			X978F	3
17	AMP	2-1703930-1	0.50x0.40F	YE	0.35			X988F	2
18	AMP	2-1703930-1	0.50x0.40F	GY	0.35			X988F	3
19	AMP	2-1703930-1	0.50x0.40F	GN	0.35			X988F	1
20	AMP	2-1703930-1	0.50x0.40F	VT	0.35			X988F	4
