X535

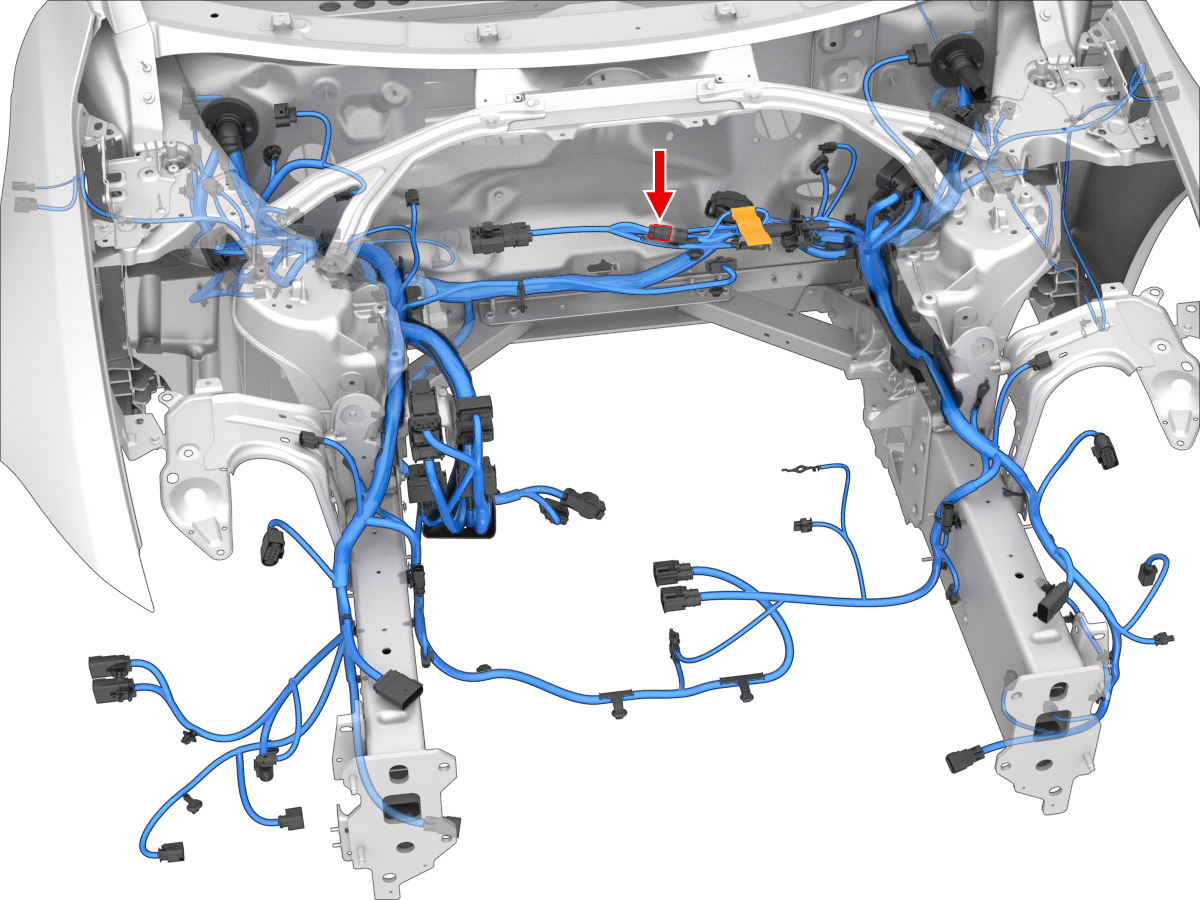

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33000-0004 | 1.5x0.8M | YE | 0.50 | TESLA | MAT-120-240 | X978M | 11 |
| 2 | MOLEX | 33000-0002 | 1.5x0.8M | VT | 1.00 | TESLA | MAT-120-240 | X990F | 11 |
| 3 | MOLEX | 33000-0004 | 1.5x0.8M | RD | 0.50 | TESLA | MAT-120-240 | X954M | 17 |
| 4 | MOLEX | 33000-0002 | 1.5x0.8M | VT | 1.00 | TESLA | MAT-120-240 | X978M | 1 |
| 5 | MOLEX | 33000-0004 | 1.5x0.8M | YE | 0.50 | TESLA | MAT-120-240 | X037 | 22 |
| 6 | MOLEX | 33000-0004 | 1.5x0.8M | RD | 0.35 | TESLA | MAT-120-240 | X977M | 5 |
