X549

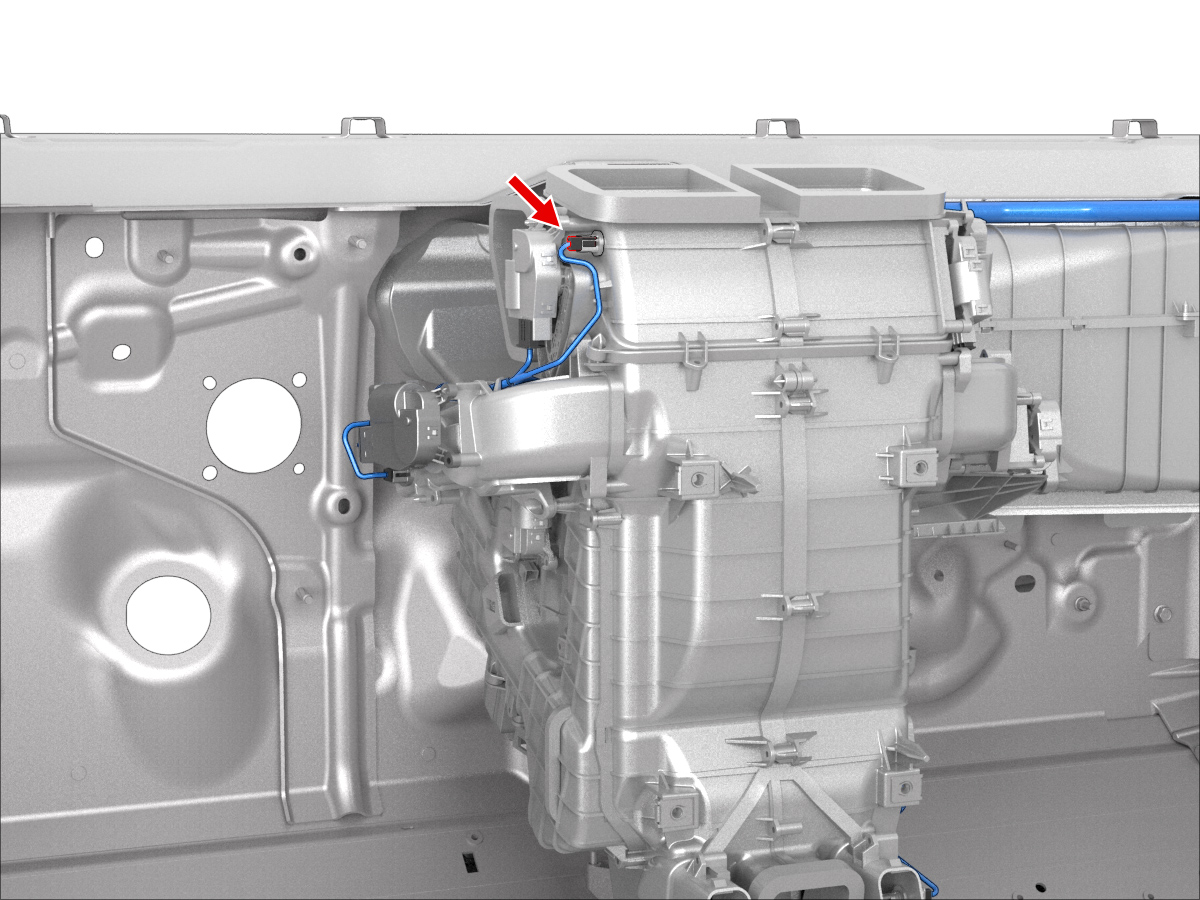

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A | DELPHI | 12064971 | 1.5x0.6F | GY/BK | 0.35 | X058 | 13 | ||
| B | DELPHI | 12064971 | 1.5x0.6F | BK | 0.35 |
