X560

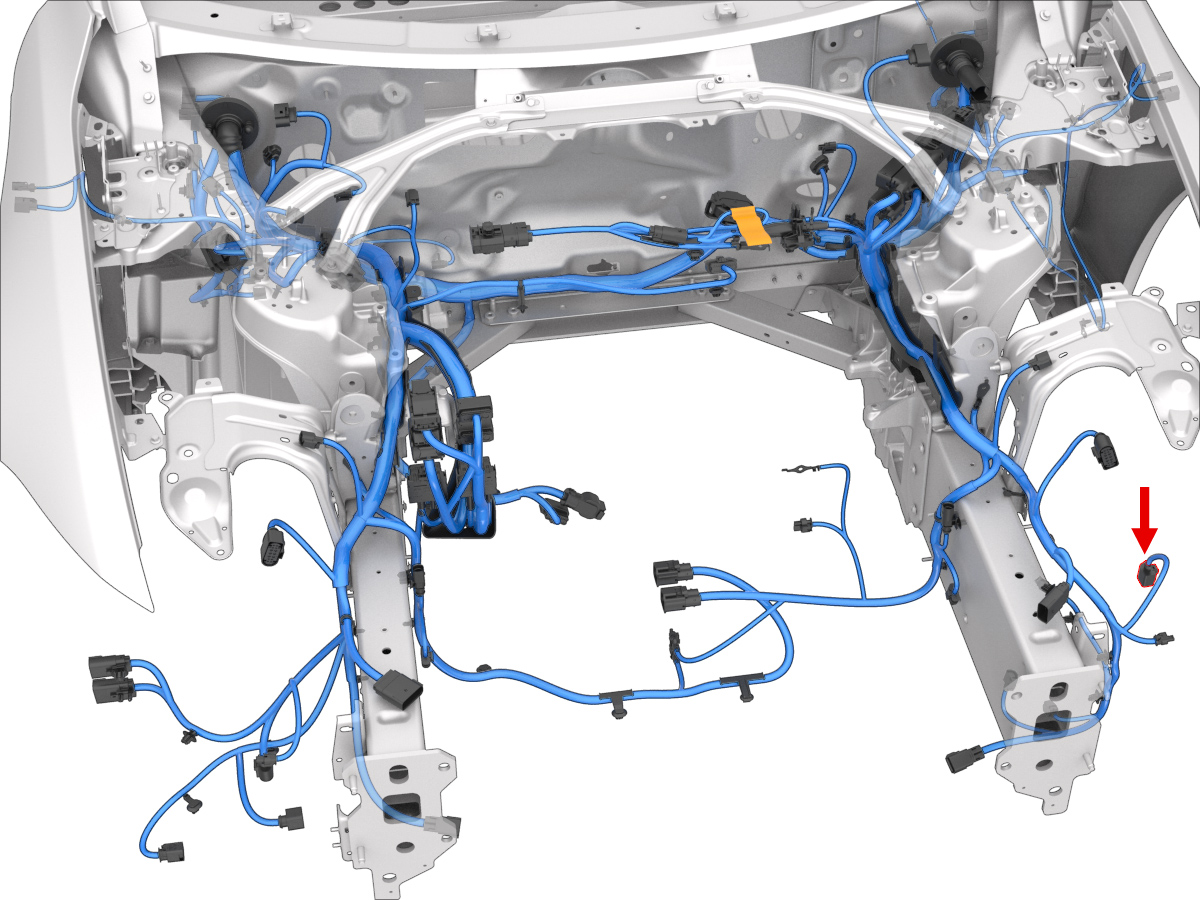

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 964286-1 | 2.8x0.8FS | BK | 1.00 | AMP | 963294-1 | G500 | 10 |
| 2 | AMP | 964286-1 | 2.8x0.8FS | RD | 1.00 | AMP | 963294-1 | X010 | L5 |
