X672

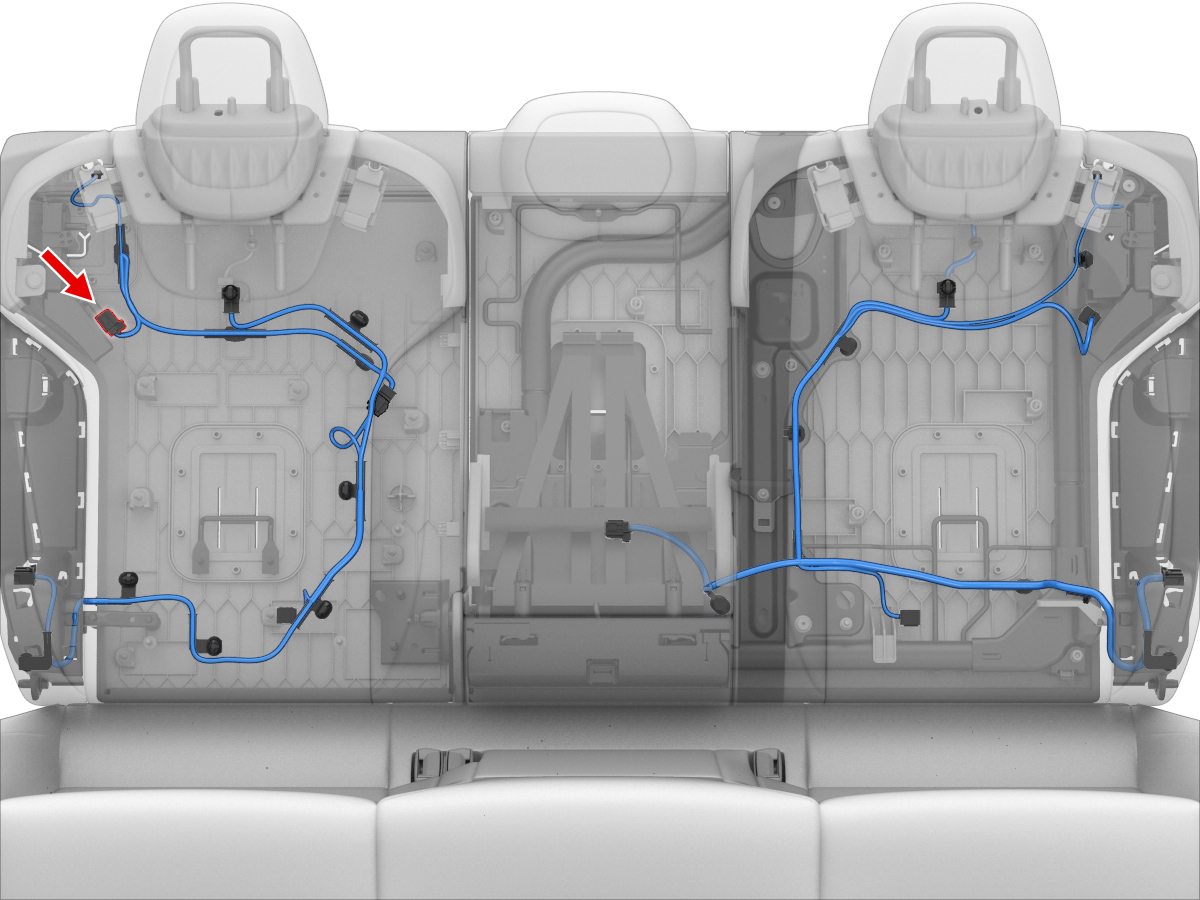

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35072403 | 1.2x0.6F | YE | 0.50 | X938M | 1 | ||
| 2 | DELPHI | 35072403 | 1.2x0.6F | GY | 0.50 | X938M | 2 | ||
| 3 | DELPHI | 35410019 | 1.2x0.6F | BN | 0.35 | ||||
| 4 | DELPHI | 35410019 | 1.2x0.6F | BU | 0.35 | X938M | 4 |
