X807F

Tesla Part Number
1043845-09-A
Connector
ROSENBERGER 59Z113-000-K
Color
CR

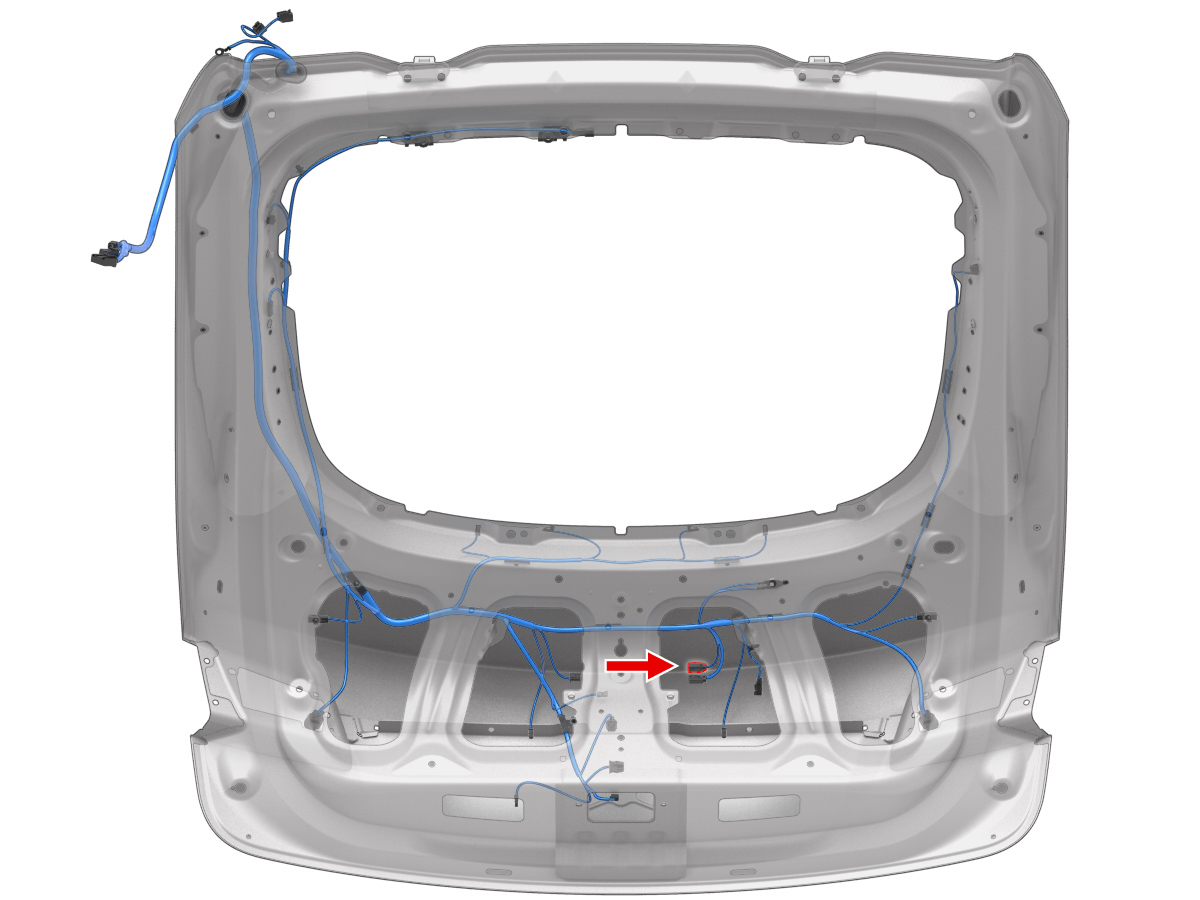

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59K16B-102T4COAXFBKRG316X821B1
