X820

Tesla Part Number
1090267-01-A
Connector
ROSENBERGER 59K27D-1M4Z4-B
Color
WT

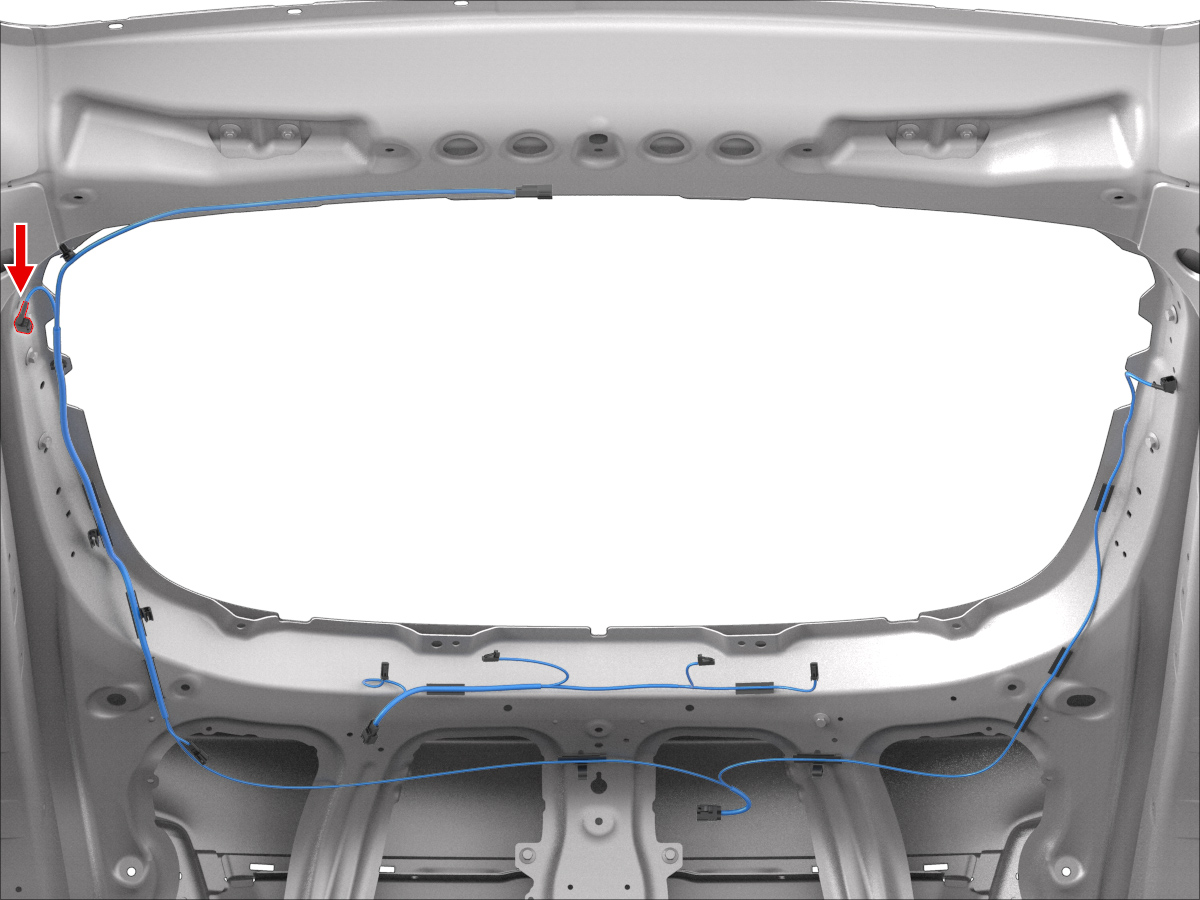

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1GENPIA-COAX-LCOAXBKD302X805F1
