X830

Tesla Part Number
1764851-03-B
Connector
ROSENBERGER AMZW17-000-D
Color
VT

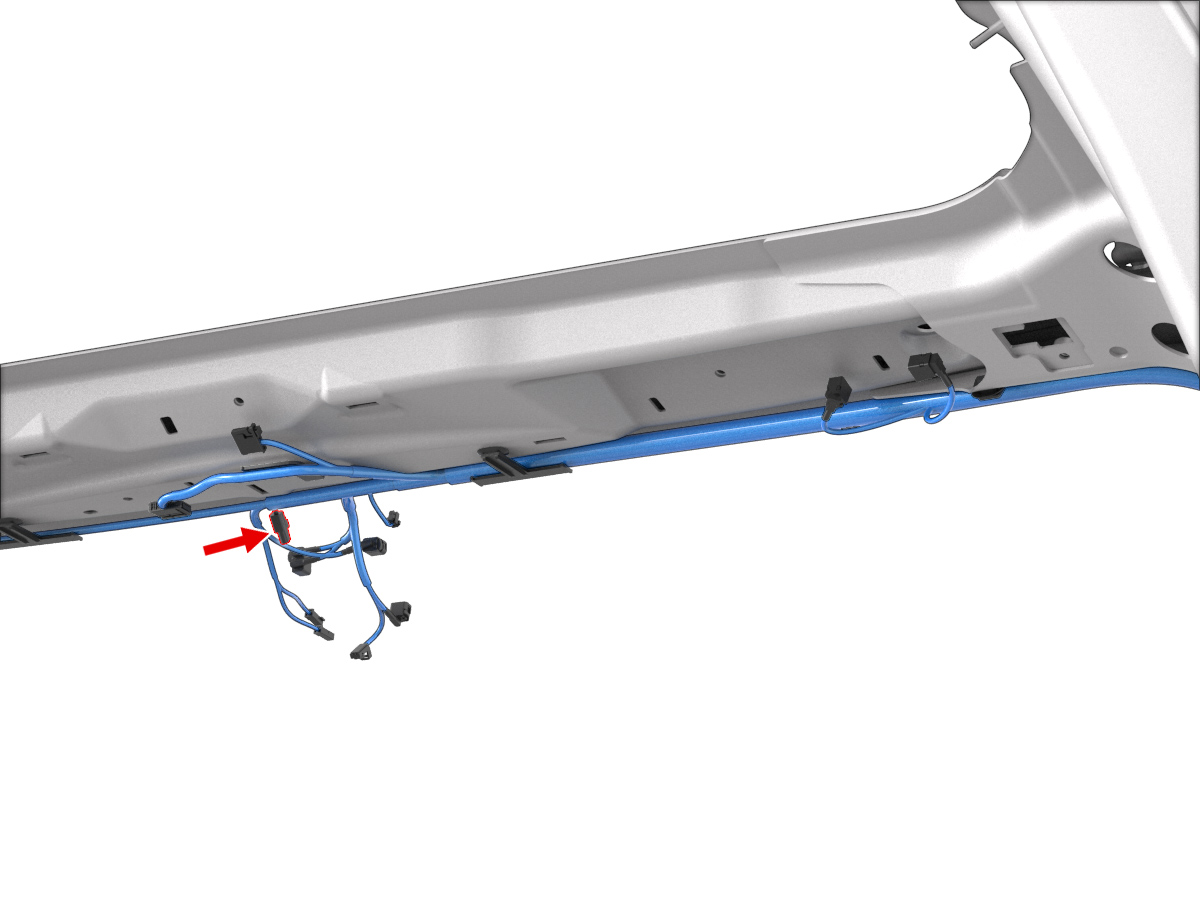

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGERAMK18A-1M4Z5COAXBKD302X824F2
