X834

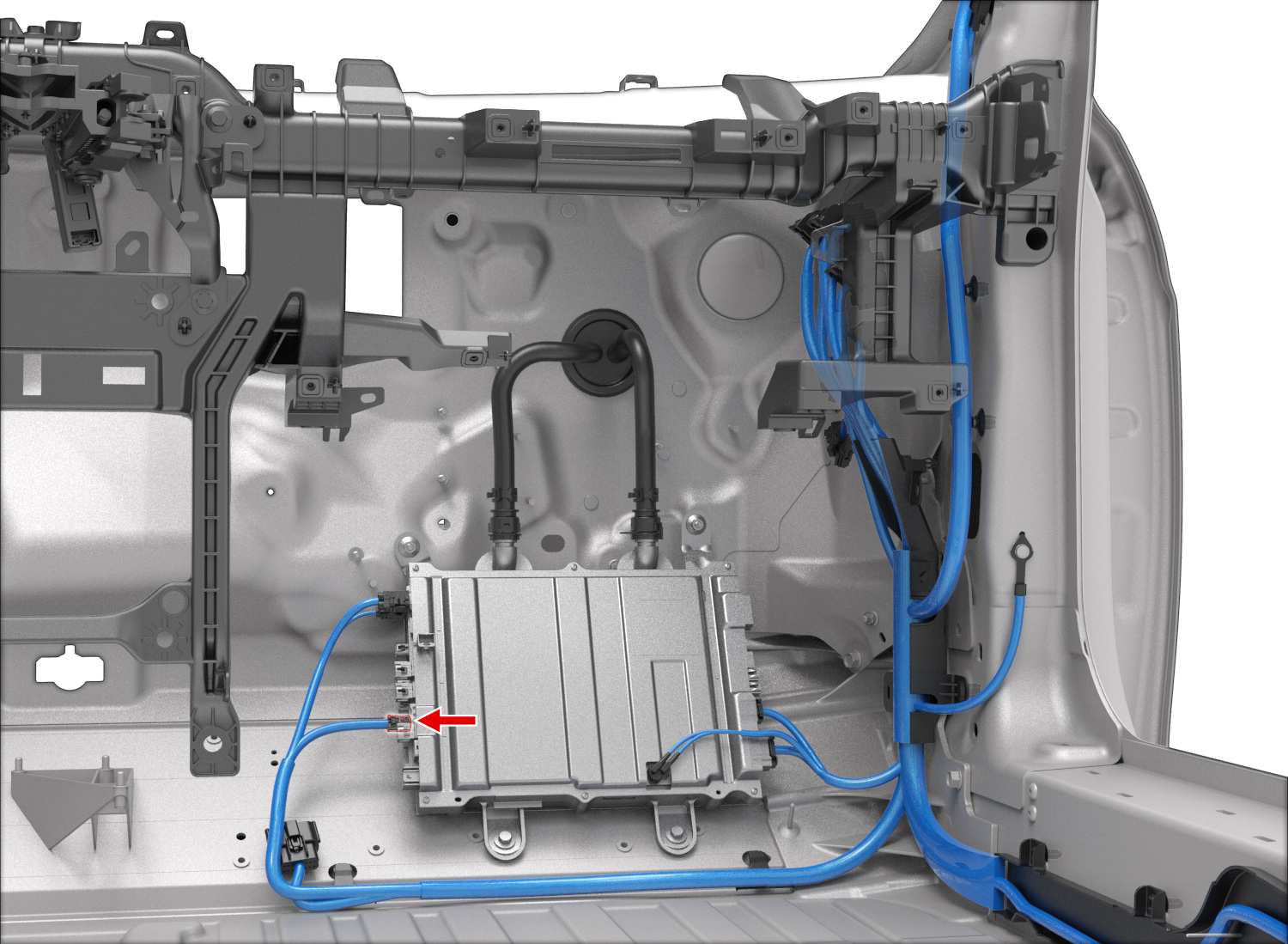

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2298488-1 | COAX | BK | D302 | X843F | 1 | ||
| 2 | AMP | 2298488-1 | COAX | BK | D302 | X867 | 1 | ||
| 3 | AMP | 2298488-1 | COAX | BK | D302 | X826M | 1 | ||
| 4 | AMP | 2298510-1 | COAX | BK | D462 | X842 | 1 |
