X867

Tesla Part Number
1783747-00-A
Connector
ROSENBERGER 59Z066-L00-A
Color
BK

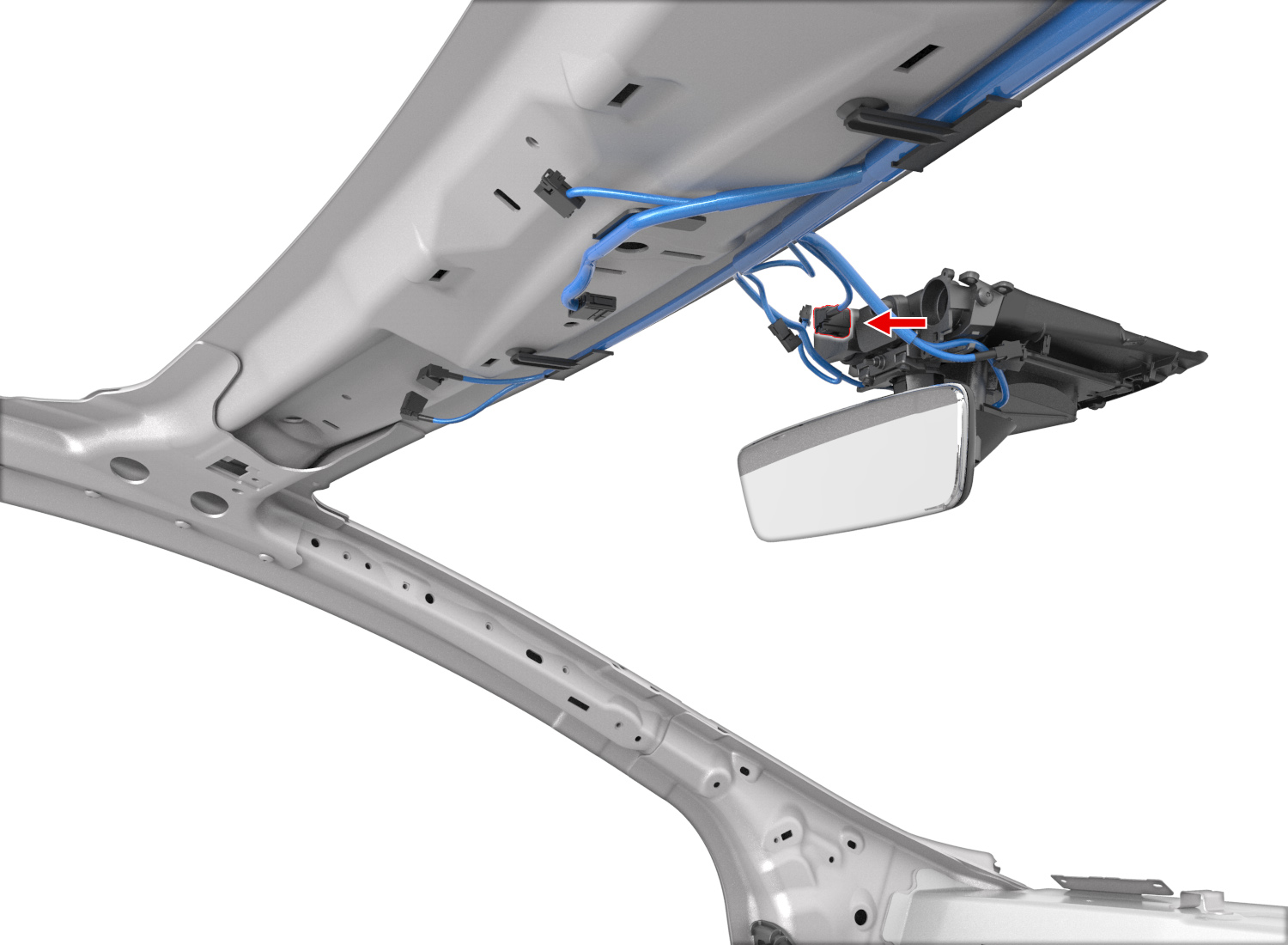

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59K28H-1M4/90A4COAXBKD302X8342
