X910M

Tesla Part Number

1486225-00-A

Connector

DELPHI 33257537

Color

BK

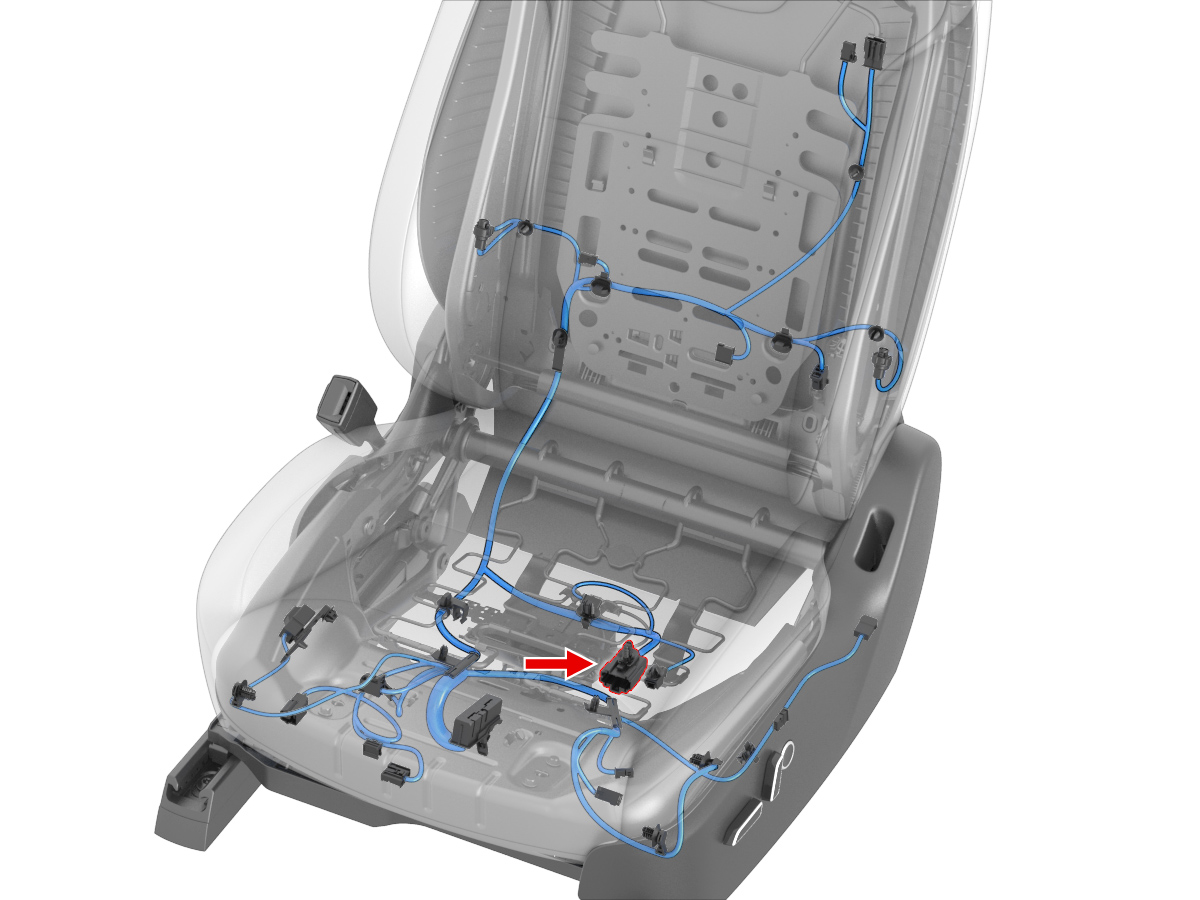

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35412744	1.2x0.6M	RD	0.35			X1050	2
2	DELPHI	35412744	1.2x0.6M	WH	0.35			X1050	1
3	unused
4	unused
5	DELPHI	35091062	1.2x0.6M	RD	0.50			X1075	1
6	DELPHI	35091062	1.2x0.6M	BK	0.50			X1075	2
7	DELPHI	35091062	1.2x0.6M	GN	0.50			X1075	4
8	unused
9	DELPHI	35412744	1.2x0.6M	GY	0.35			X1050	5
10	DELPHI	35412744	1.2x0.6M	YE	0.35			X1050	4
11	unused
12	unused
13	DELPHI	35412744	1.2x0.6M	WH	0.35			X232	1
14	DELPHI	35412744	1.2x0.6M	BU	0.35			X232	2
15	DELPHI	35412744	1.2x0.6M	BK	0.35			X1050	3
16	unused
