X921F

Tesla Part Number

1042580-00-A

Connector

SUMITOMO 6098-3917

Color

WH

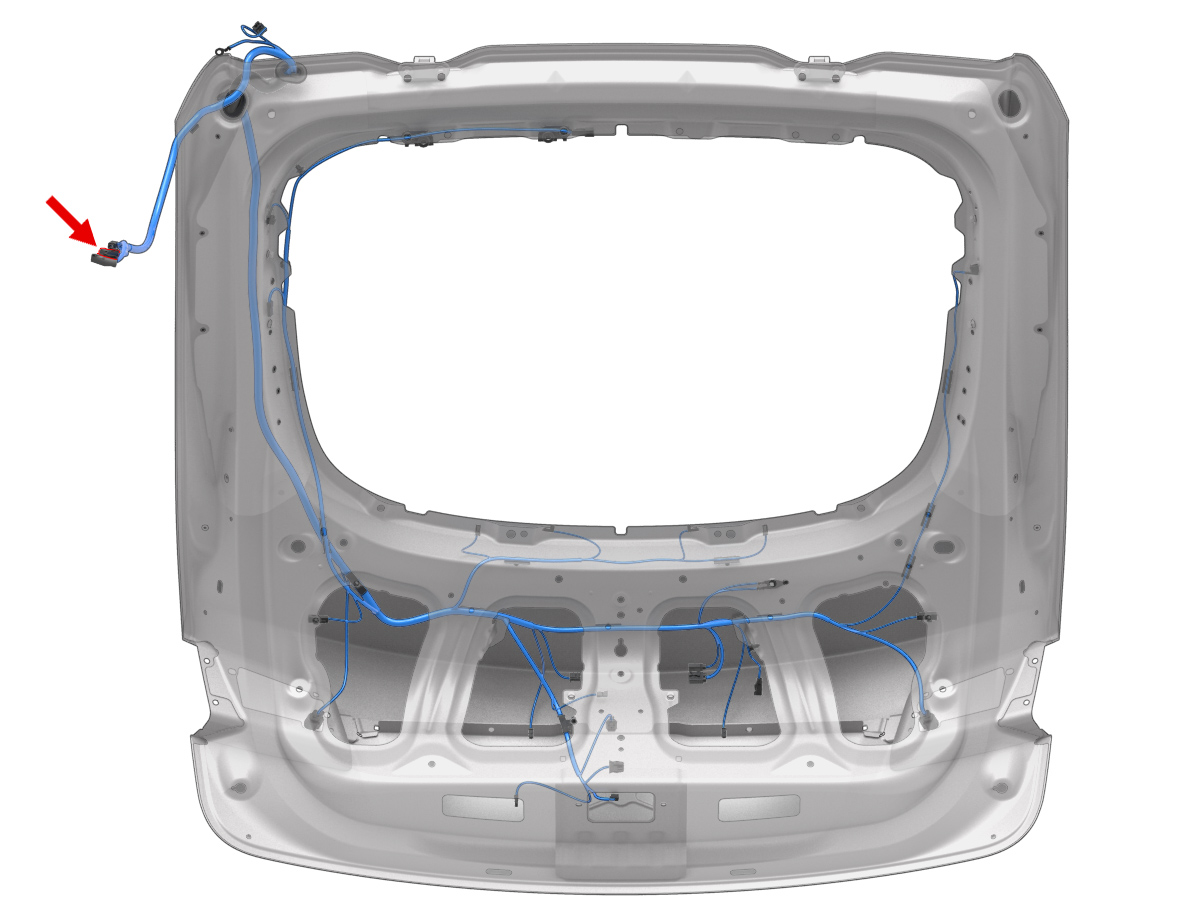

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X385	3
2	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X385	1
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X385	2
4	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X292	1
5	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35
6	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X271	1
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X271	3
8	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X387	1
9	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X385	4
10	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X394	1
11	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X394	3
12	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X940F	1
13	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X273	1
14	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X273	3
