X921M

Tesla Part Number

1042579-00-A

Connector

SUMITOMO 6098-3877

Color

WH

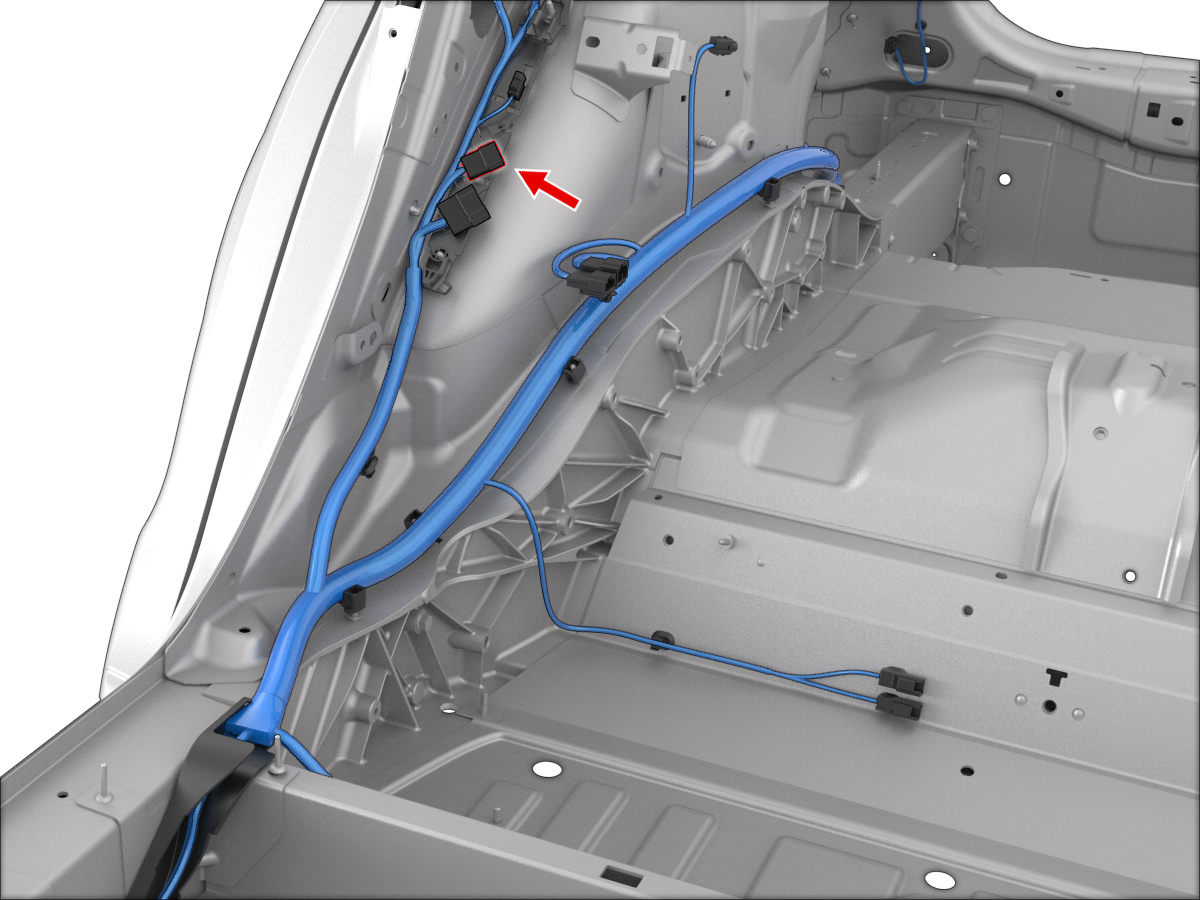

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X052	13
2	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50			X050A	26
3	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X050A	27
4	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X051	44
5	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X050A	4
6	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X050A	2
7	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X050A	13
8	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X052	15
9	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X052	12
10	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X052	7
11	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X051	45
12	SUMITOMO	8100-3623	0.64x0.64M	VT	0.50			X050A	7
13	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X050A	14
14	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X050A	1
