X922F

Tesla Part Number

1500346-00-A

Connector

SUMITOMO 6098-6819

Color

WH

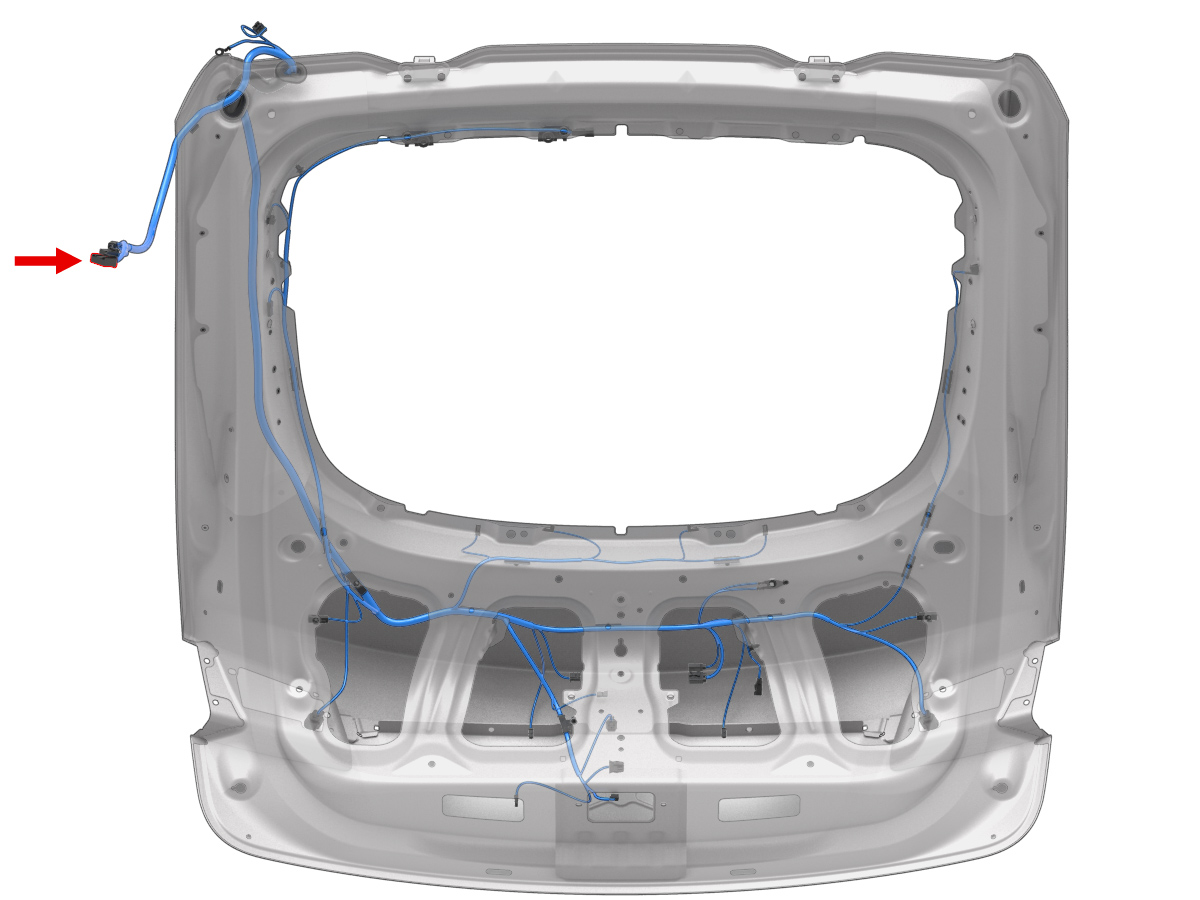

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35
2	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X439	7
3	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X439	9
4	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X439	1
5	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X396	2
6	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X941F	1
7	SUMITOMO	8240-0213	1.5x0.64F	GN	0.75			X941F	2
8	SUMITOMO	8240-4932	4.8x0.8F	YE	3.00			X088	1
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X271	2
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X390	1
11	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X389	1
12	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X273	2
13	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X396	1
14	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X941F	3
15	SUMITOMO	8240-0213	1.5x0.64F	YE	0.75			X941F	4
