X922M

Tesla Part Number

1500347-00-A

Connector

SUMITOMO 6098-6816

Color

WH

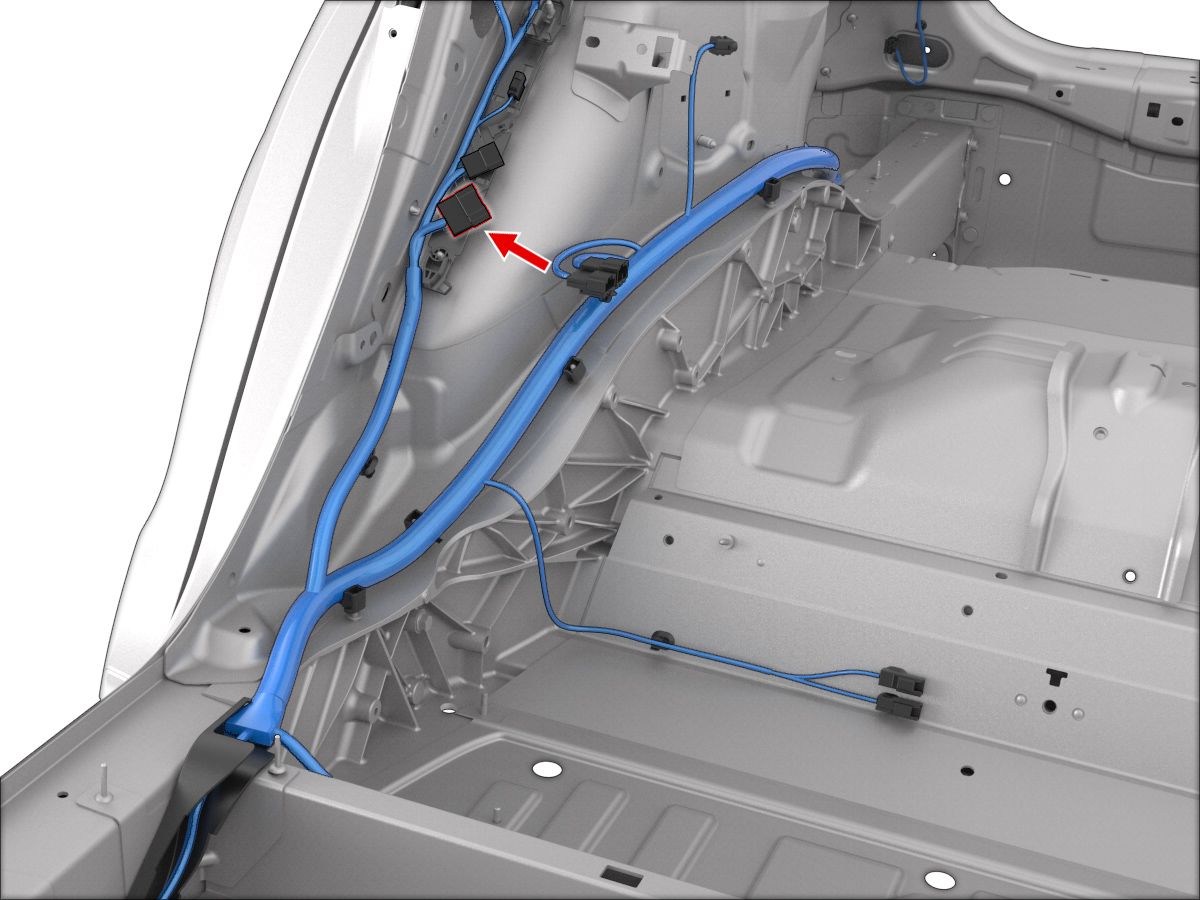

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X052	10
2	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X454	11
3	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X454	12
4	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X050B	10
5	SUMITOMO	8230-4925	1.5x0.6M	YE	0.50			X062	19
6	SUMITOMO	8230-4924	1.5x0.6M	VT	0.75			X446	12
7	SUMITOMO	8230-4924	1.5x0.6M	GN	0.75			X446	11
8	SUMITOMO	8230-4542	4.8x0.8M	YE	3.00			X054	3
9	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X060A	35
10	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X052	8
11	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X052	9
12	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X052	24
13	SUMITOMO	8230-4925	1.5x0.6M	GY	0.50			X062	18
14	SUMITOMO	8230-4924	1.5x0.6M	BU	0.75			X446	6
15	SUMITOMO	8230-4924	1.5x0.6M	YE	0.75			X446	5
