X927F

Tesla Part Number

1486224-00-A

Connector

DELPHI 33257519

Color

BK

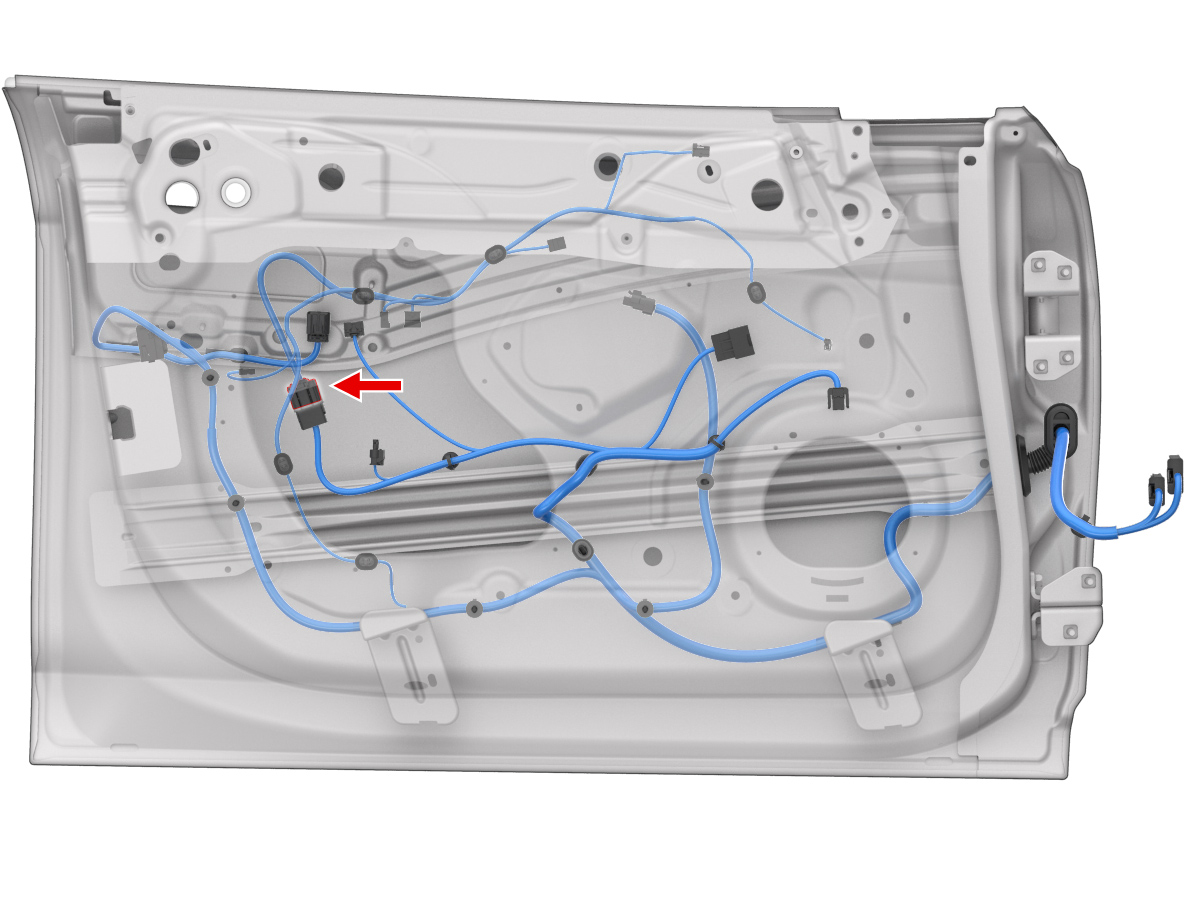

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072404	1.2x0.6F	WH	0.75			X424	1
2	DELPHI	35410019	1.2x0.6F	BU	0.35			X314	1
3	DELPHI	35410019	1.2x0.6F	YE	0.35			X317	2
4	DELPHI	35410019	1.2x0.6F	GN	0.35			X307	2
5	DELPHI	35072403	1.2x0.6F	BN	0.50
6	DELPHI	35410019	1.2x0.6F	VT	0.35			X307	3
7	DELPHI	35410019	1.2x0.6F	RD	0.35			X305	2
8	DELPHI	35410019	1.2x0.6F	BU	0.35			X304	3
9	DELPHI	35072404	1.2x0.6F	YE	0.75			X424	2
10	DELPHI	35410019	1.2x0.6F	GY	0.35			X305	1
11	DELPHI	35410019	1.2x0.6F	VT	0.35			X317	1
12	DELPHI	35410019	1.2x0.6F	BU	0.35			X313	1
13	DELPHI	35410019	1.2x0.6F	RD	0.35			X307	1
14	unused
15	DELPHI	35410019	1.2x0.6F	GN	0.35			X304	2
16	DELPHI	35410019	1.2x0.6F	WH	0.35			X304	4
