X927M_1

Tesla Part Number

1486225-00-A

Connector

DELPHI 33257537

Color

BK

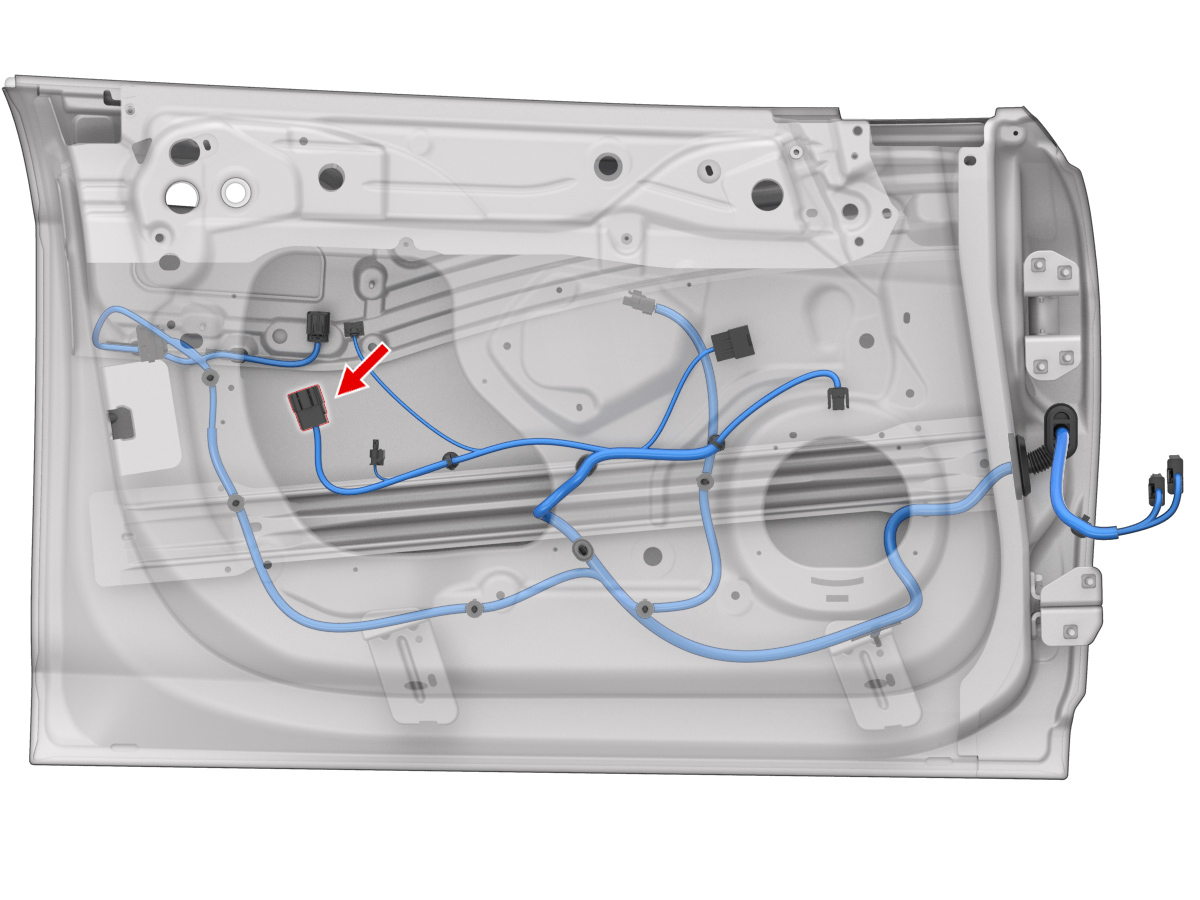

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35091062	1.2x0.6M	WH	0.50			X053B	10
2	DELPHI	35412744	1.2x0.6M	BU	0.35			X053A	22
3	DELPHI	35412744	1.2x0.6M	YE	0.35			X053A	18
4	DELPHI	35412744	1.2x0.6M	GN	0.35			X053A	7
5	DELPHI	35091062	1.2x0.6M	BN	0.50
6	DELPHI	35412744	1.2x0.6M	VT	0.35			X053B	13
7	DELPHI	35412744	1.2x0.6M	RD	0.35			X053B	9
8	DELPHI	35412744	1.2x0.6M	BU	0.35			X053B	6
9	DELPHI	35091062	1.2x0.6M	YE	0.50			X053B	19
10	DELPHI	35412744	1.2x0.6M	GY	0.35			X053A	12
11	DELPHI	35412744	1.2x0.6M	VT	0.35			X053A	17
12	DELPHI	35412744	1.2x0.6M	BU	0.35			X053A	19
13	DELPHI	35412744	1.2x0.6M	RD	0.35			X053A	23
14	unused
15	DELPHI	35412744	1.2x0.6M	GN	0.35			X053B	8
16	DELPHI	35412744	1.2x0.6M	WH	0.35			X053A	6
