X930M

Tesla Part Number

1004937-00-B

Connector

MOLEX 33482-6202

Color

GY

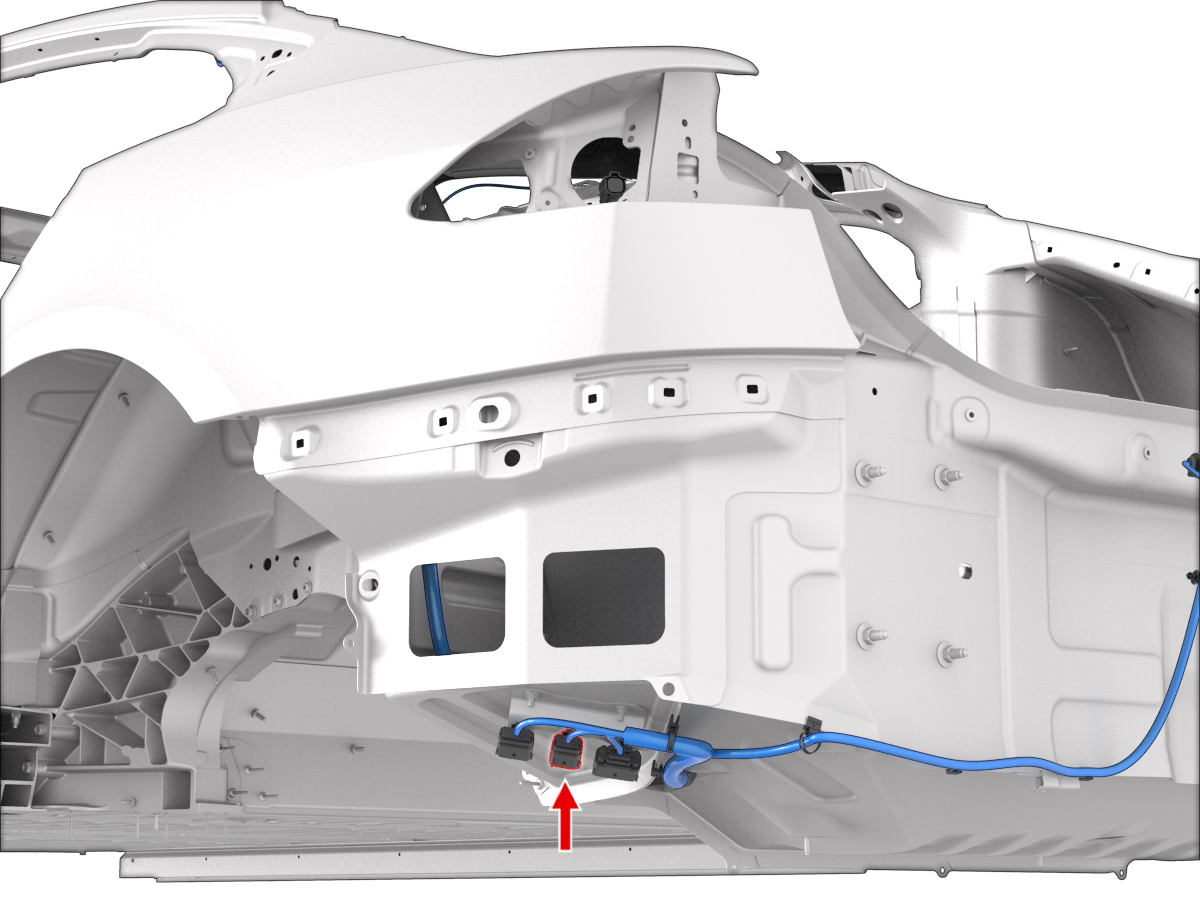

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0001	1.5x0.8M	WH	1.50	TESLA	MAT-120-240	X038A	34
2	MOLEX	33000-0001	1.5x0.8M	BU	1.50	TESLA	MAT-120-240	X976F	11
3	unused
4	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X031	38
5	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X031	37
6	MOLEX	33000-0001	1.5x0.8M	BK	1.50	TESLA	MAT-120-240	G720	1
7	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X038A	6
8	MOLEX	33000-0004	1.5x0.8M	TN	0.35	TESLA	MAT-120-240	X038A	21
9	unused
10	unused
11	MOLEX	33000-0001	1.5x0.8M	BK	1.50	TESLA	MAT-120-240	G720	1
12	MOLEX	33000-0001	1.5x0.8M	BK	1.50	TESLA	MAT-120-240	G720	1
