X936F

Tesla Part Number

1042618-01-A

Connector

SUMITOMO 6098-5662

Color

BK

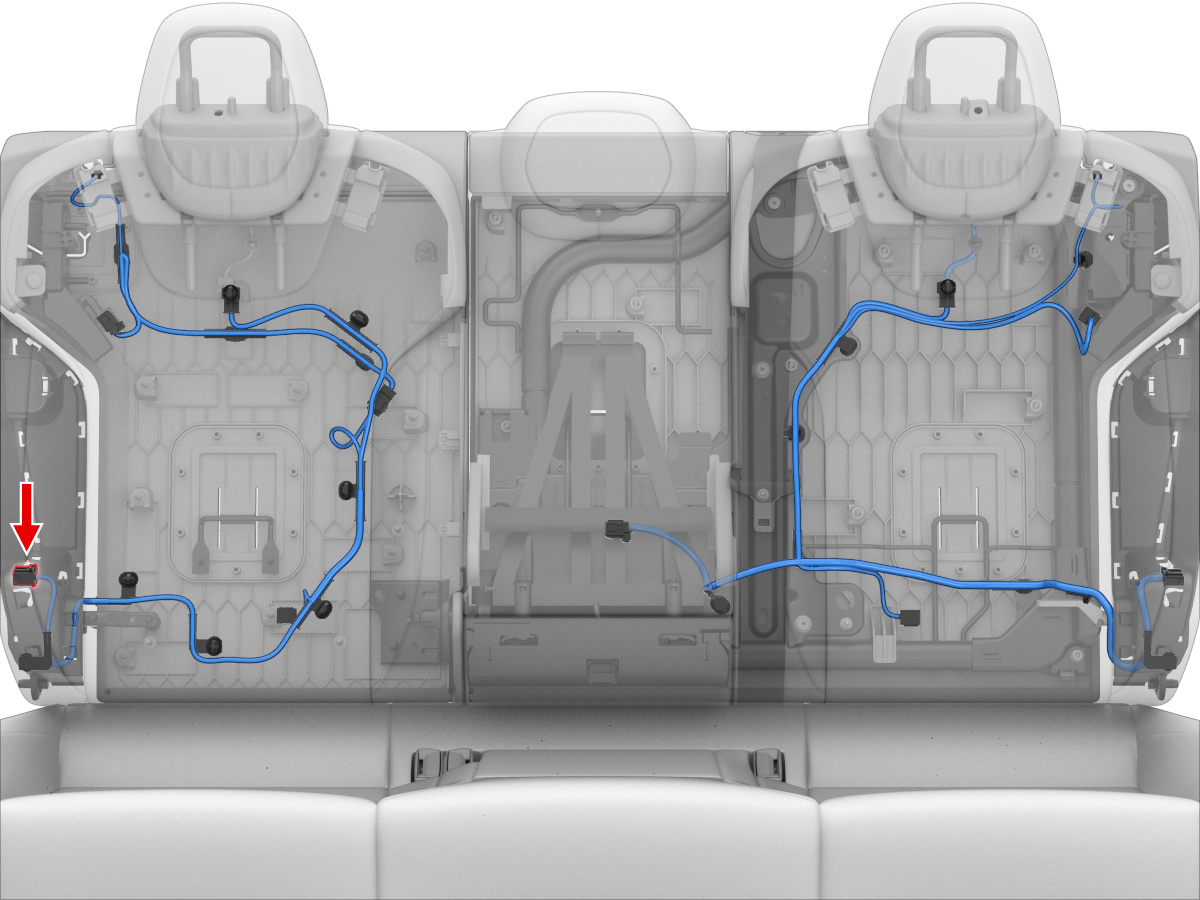

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X938F	1
2	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X938F	2
3	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X677	2
4	SUMITOMO	8240-0213	1.5x0.64F	BK	0.75			X677	1
5	unused
6	unused
7	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X938F	6
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X938F	3
9	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X938F	4
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X938F	5
11	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X682	3
12	unused
13	unused
14	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X682	2
15	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X682	1
16	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X682	5
17	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X682	4
18	unused
