X941M

Tesla Part Number
1472651-00-A
Connector
AMP 936121-1
Color
BK

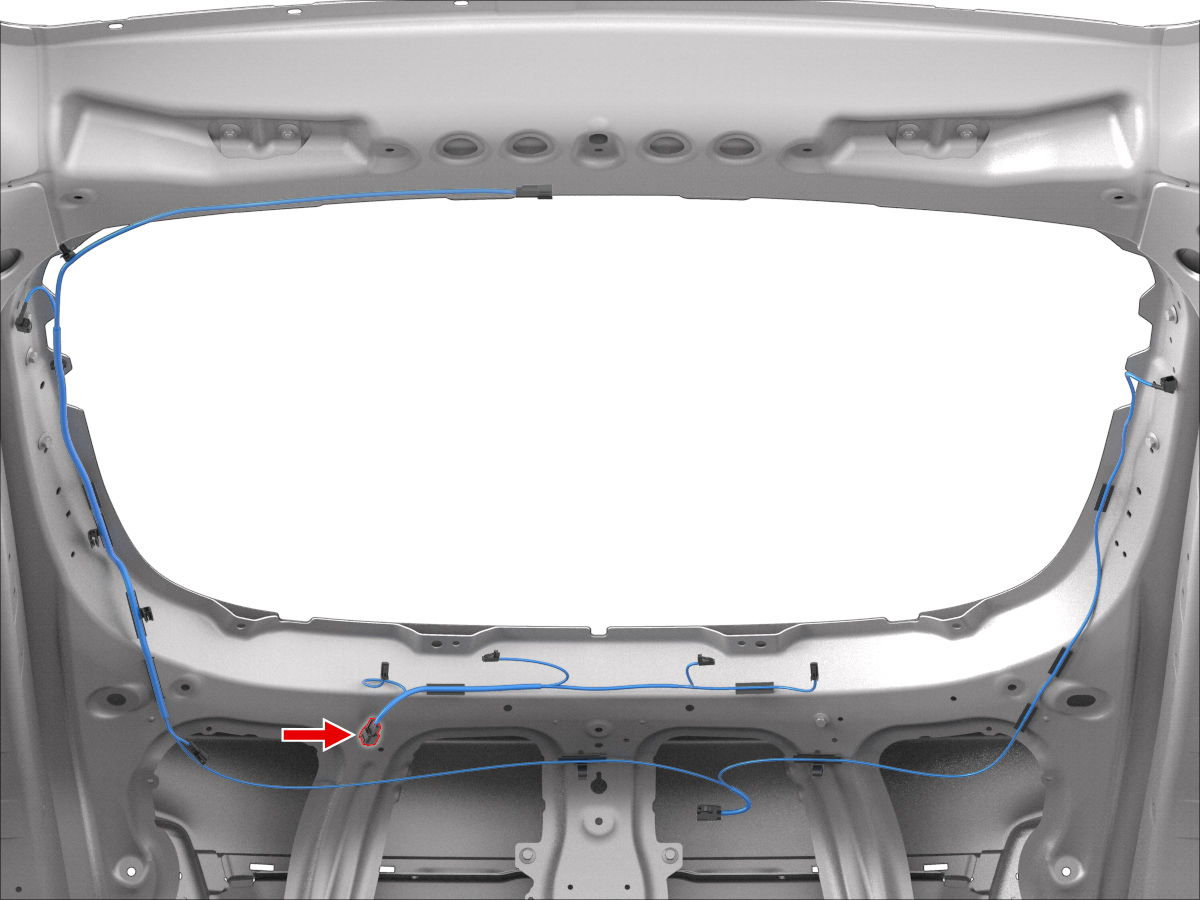

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-963716-10.63x0.63MVT0.75
2AMP5-963716-10.63x0.63MGN0.75
3AMP5-963716-10.63x0.63MBU0.75
4AMP5-963716-10.63x0.63MYE0.75
