X943F

Tesla Part Number

1486224-00-A

Connector

DELPHI 33257519

Color

BK

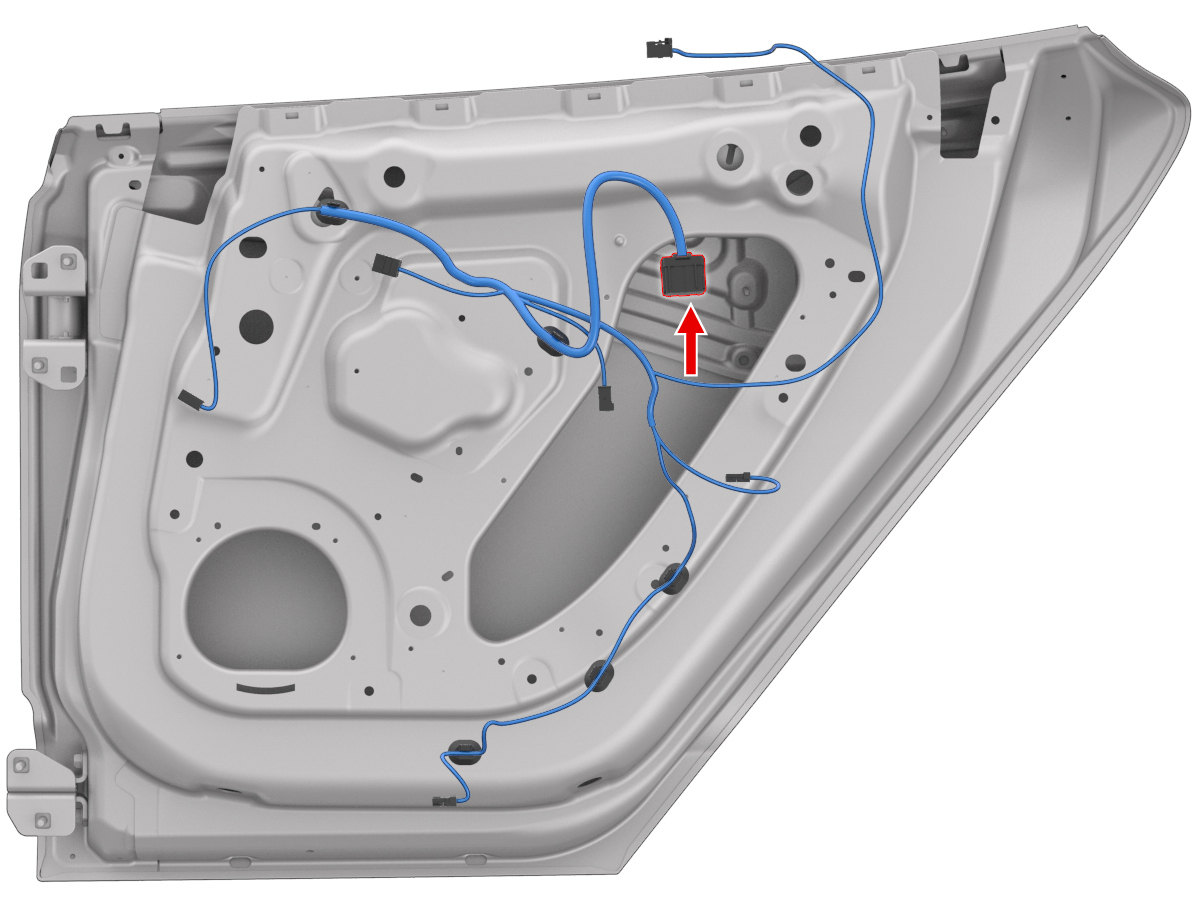

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072403	1.2x0.6F	GN	0.50			X413	1
2	DELPHI	35410019	1.2x0.6F	YE	0.35			X364	1
3	unused
4	DELPHI	35410019	1.2x0.6F	VT	0.35			X361	2
5	DELPHI	35072403	1.2x0.6F	BN	0.50
6	DELPHI	35410019	1.2x0.6F	GN	0.35			X361	3
7	DELPHI	35410019	1.2x0.6F	RD	0.35			X368	2
8	unused
9	DELPHI	35072403	1.2x0.6F	BN	0.50			X413	2
10	DELPHI	35410019	1.2x0.6F	VT	0.35			X368	1
11	unused
12	DELPHI	35410019	1.2x0.6F	WH	0.35			X363	1
13	DELPHI	35410019	1.2x0.6F	RD	0.35			X361	1
14	unused
15	unused
16	unused
