X943M

Tesla Part Number

1486225-00-A

Connector

DELPHI 33257537

Color

BK

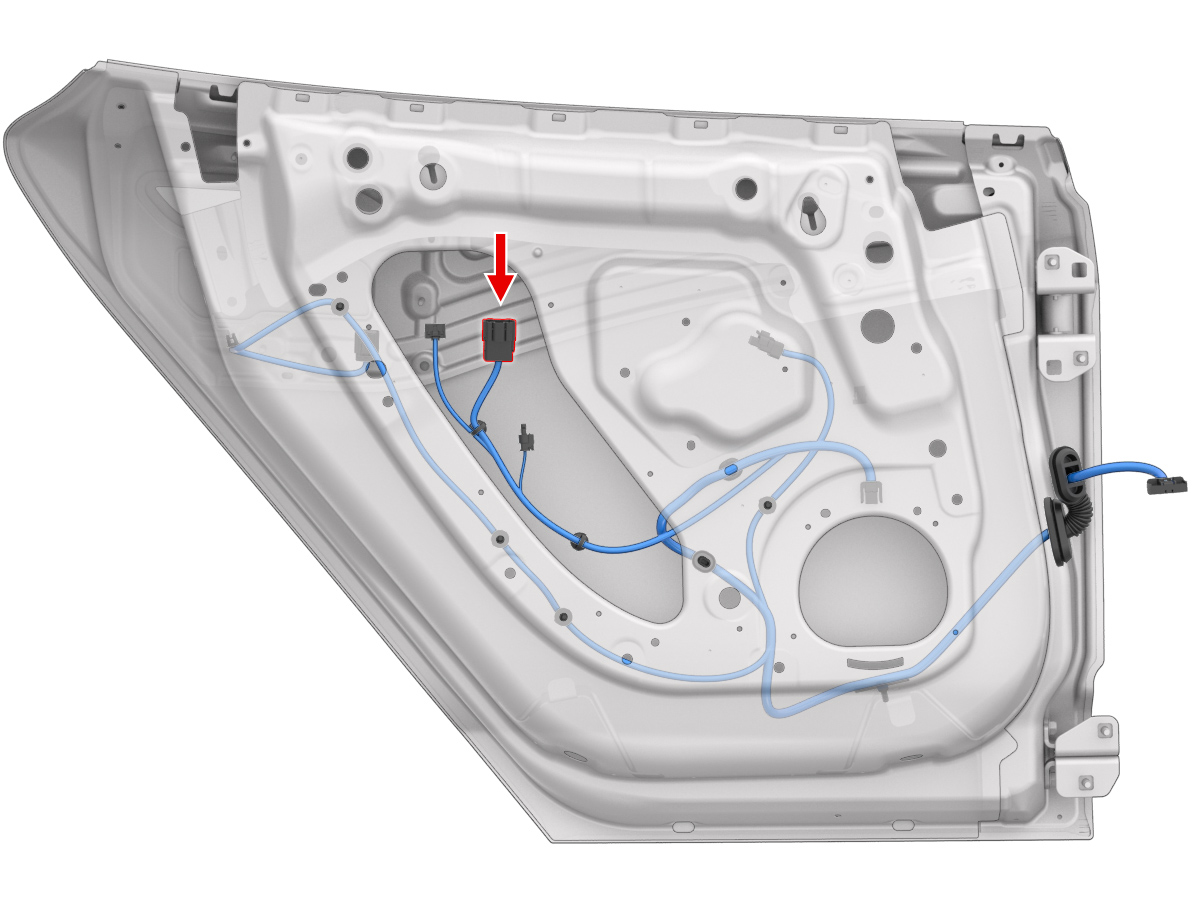

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35091062	1.2x0.6M	GN	0.50
2	DELPHI	35412744	1.2x0.6M	YE	0.35			X945F	13
3	DELPHI	35412744	1.2x0.6M	BU	0.35			X945F	19
4	DELPHI	35412744	1.2x0.6M	VT	0.35			X945F	17
5	DELPHI	35091062	1.2x0.6M	BN	0.50
6	DELPHI	35412744	1.2x0.6M	GN	0.35			X945F	8
7	DELPHI	35412744	1.2x0.6M	RD	0.35			X945F	7
8	unused
9	DELPHI	35091062	1.2x0.6M	BN	0.50
10	DELPHI	35412744	1.2x0.6M	VT	0.35			X945F	25
11	DELPHI	35412744	1.2x0.6M	GY	0.35			X945F	10
12	DELPHI	35412744	1.2x0.6M	WH	0.35			X945F	12
13	DELPHI	35412744	1.2x0.6M	RD	0.35			X945F	11
14	unused
15	unused
16	unused
