X945M

Tesla Part Number

1048098-00-A

Connector

YAZAKI 7286-1918

Color

WH

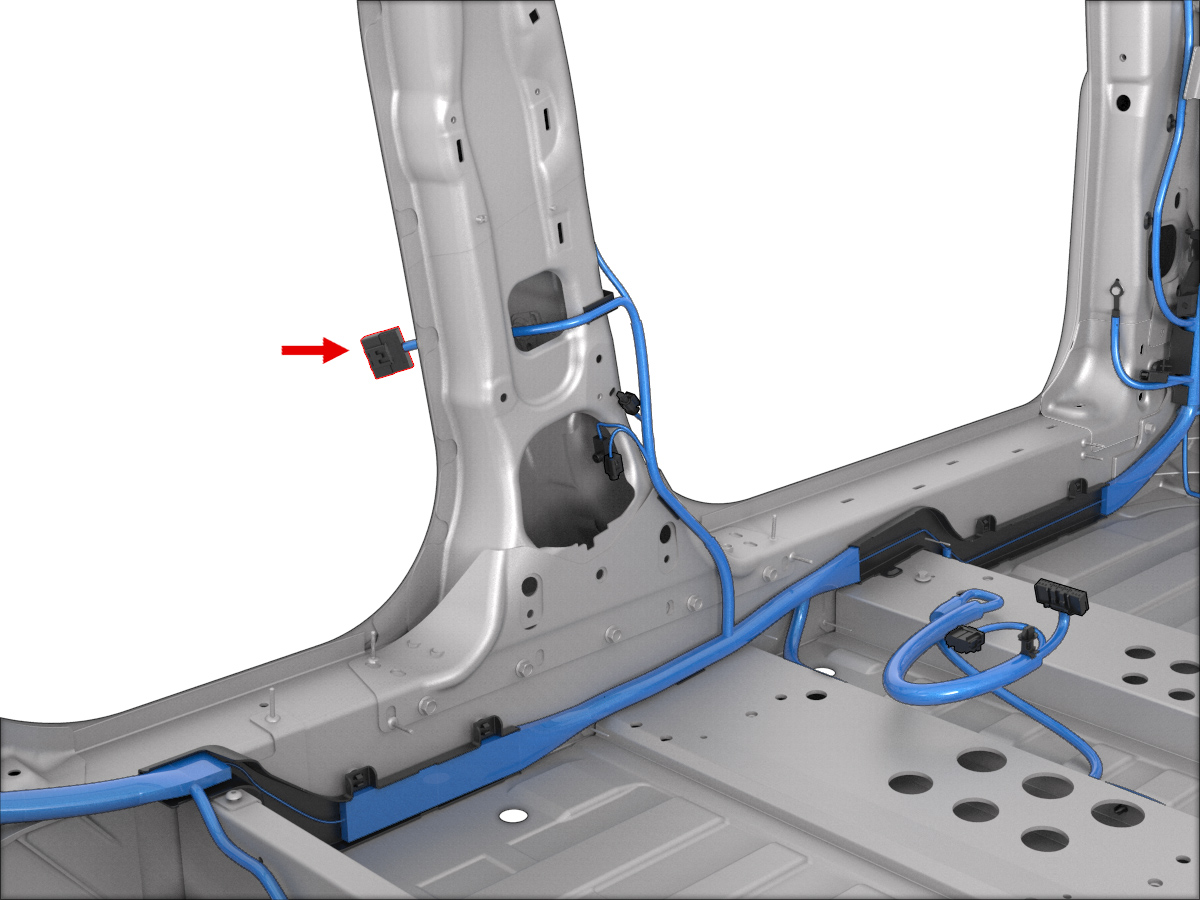

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	GN	1.50			X976F	10
2	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X031	5
3	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X031	36
4	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X031	35
5	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X038A	13
6	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X032	9
7	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X031	34
8	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X032	10
9	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X038A	33
10	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X038A	17
11	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X038B	1
12	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X038B	2
13	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X038A	4
14	SUMITOMO	8230-4923	1.5x0.6M	WH	1.50			X030A	30
15	SUMITOMO	8230-4923	1.5x0.6M	BN	1.50			X976F	20
16	unused
17	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X038B	6
18	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X032	8
19	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X032	13
20	unused
21	unused
22	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	43
23	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X201	44
24	unused
25	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X038A	27
26	SUMITOMO	8230-4923	1.5x0.6M	RD	1.50			X030A	31
