X954F

Tesla Part Number

1486226-01-A

Connector

DELPHI 33239500

Color

NA

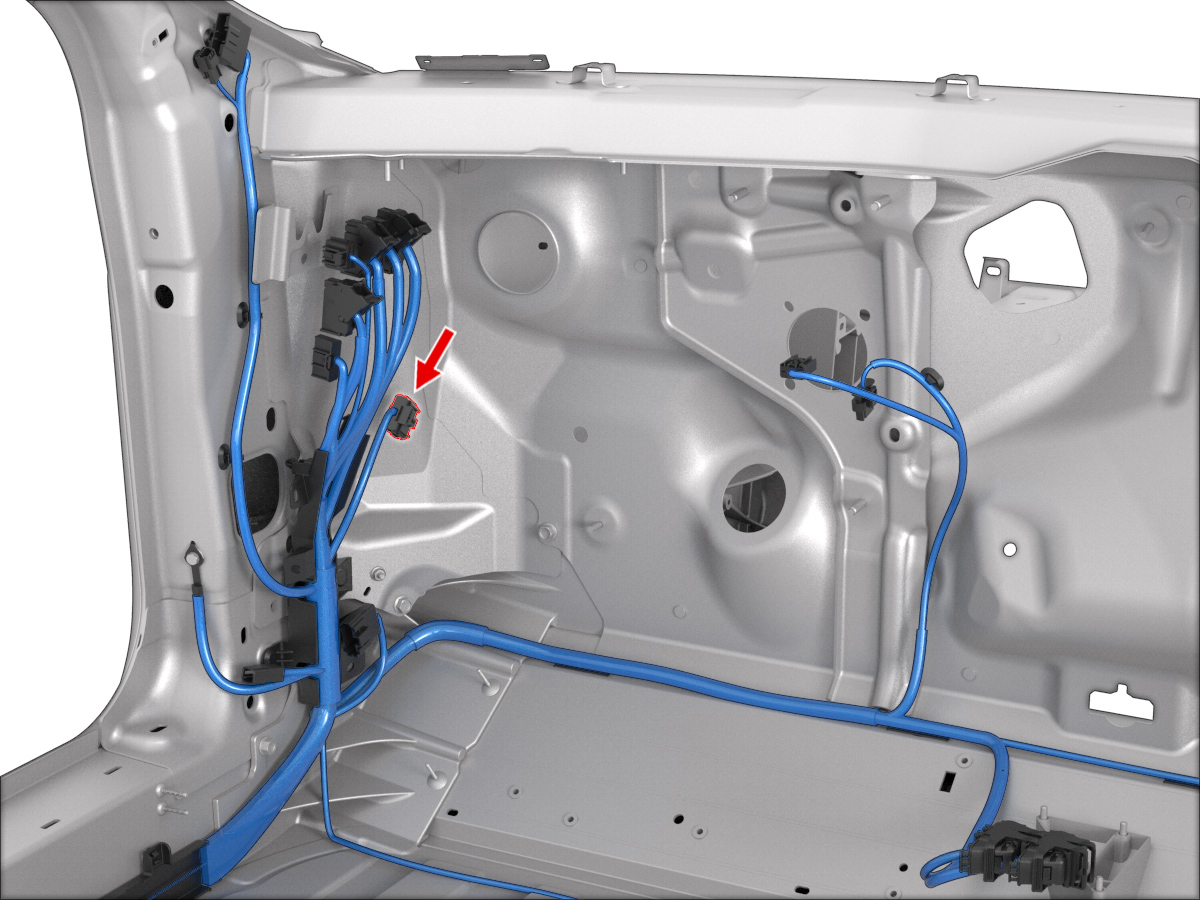

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35410019	1.2x0.6F	GN/WH	0.35			X975F	2
2	DELPHI	35410019	1.2x0.6F	GN	0.35			X975F	3
3	DELPHI	35410019	1.2x0.6F	GN/WH	0.35			X201	54
4	DELPHI	35410019	1.2x0.6F	GN	0.35			X201	53
5	unused
6	unused
7	unused
8	DELPHI	35410019	1.2x0.6F	YE	0.35			X910F_L	10
9	DELPHI	35410019	1.2x0.6F	GY	0.35			X910F_L	9
10	unused
11	DELPHI	35410019	1.2x0.6F	VT	0.35			X049	8
12	DELPHI	35410019	1.2x0.6F	WH	0.35			X049	7
13	DELPHI	35410019	1.2x0.6F	RD	0.35			X049	5
14	DELPHI	35410019	1.2x0.6F	GY	0.35			X049	6
15	DELPHI	35410019	1.2x0.6F	BU	0.35			X201	56
16	unused
17	DELPHI	35410019	1.2x0.6F	RD	0.35			X200	27
18	unused
19	unused
20	unused
