X956F

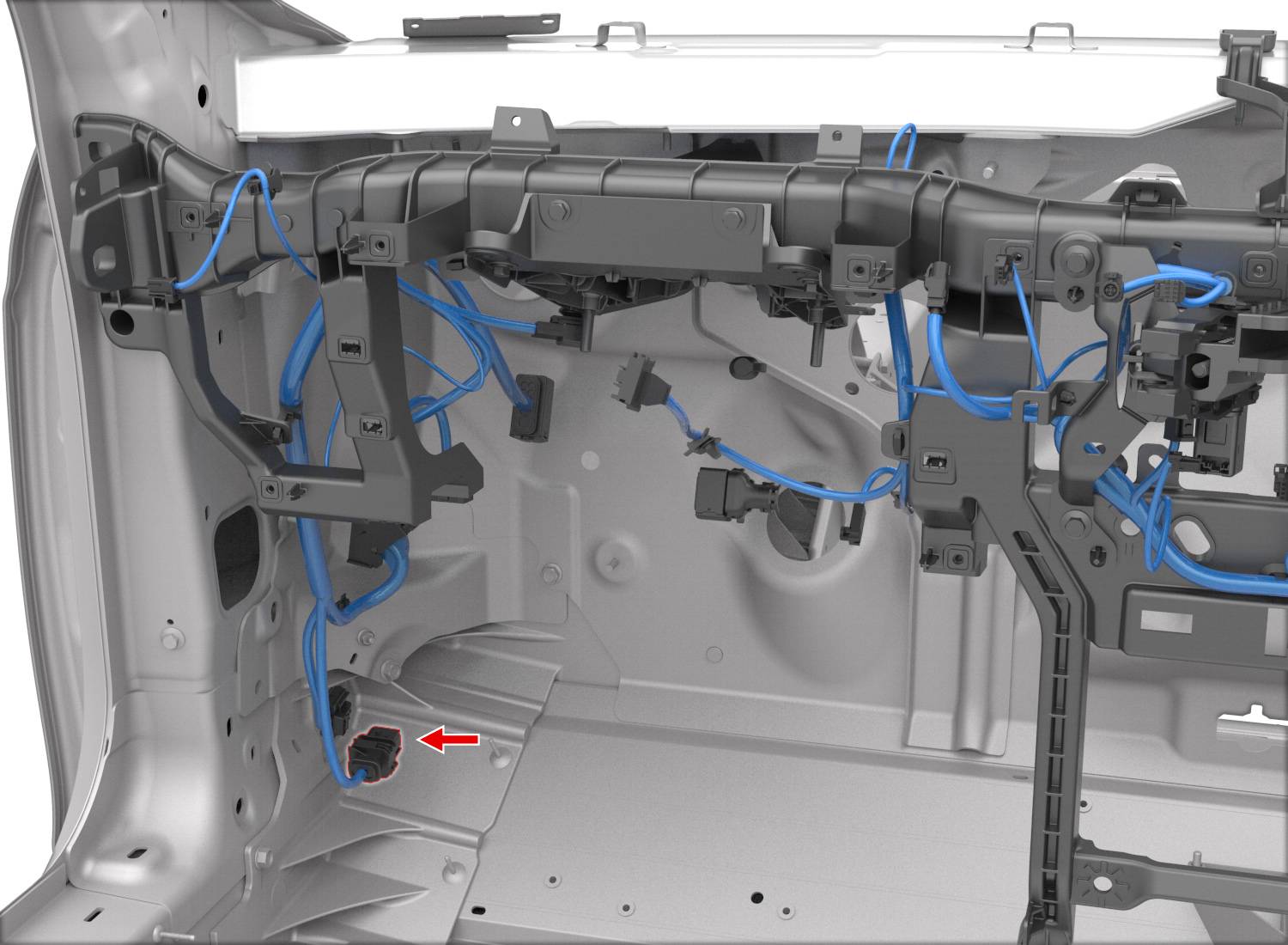

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | AMP | 1241418-4 | 6.3x0.8F | BU | 4.00 | AMP | 1394512-1 | X150 | 1 |
