X956M

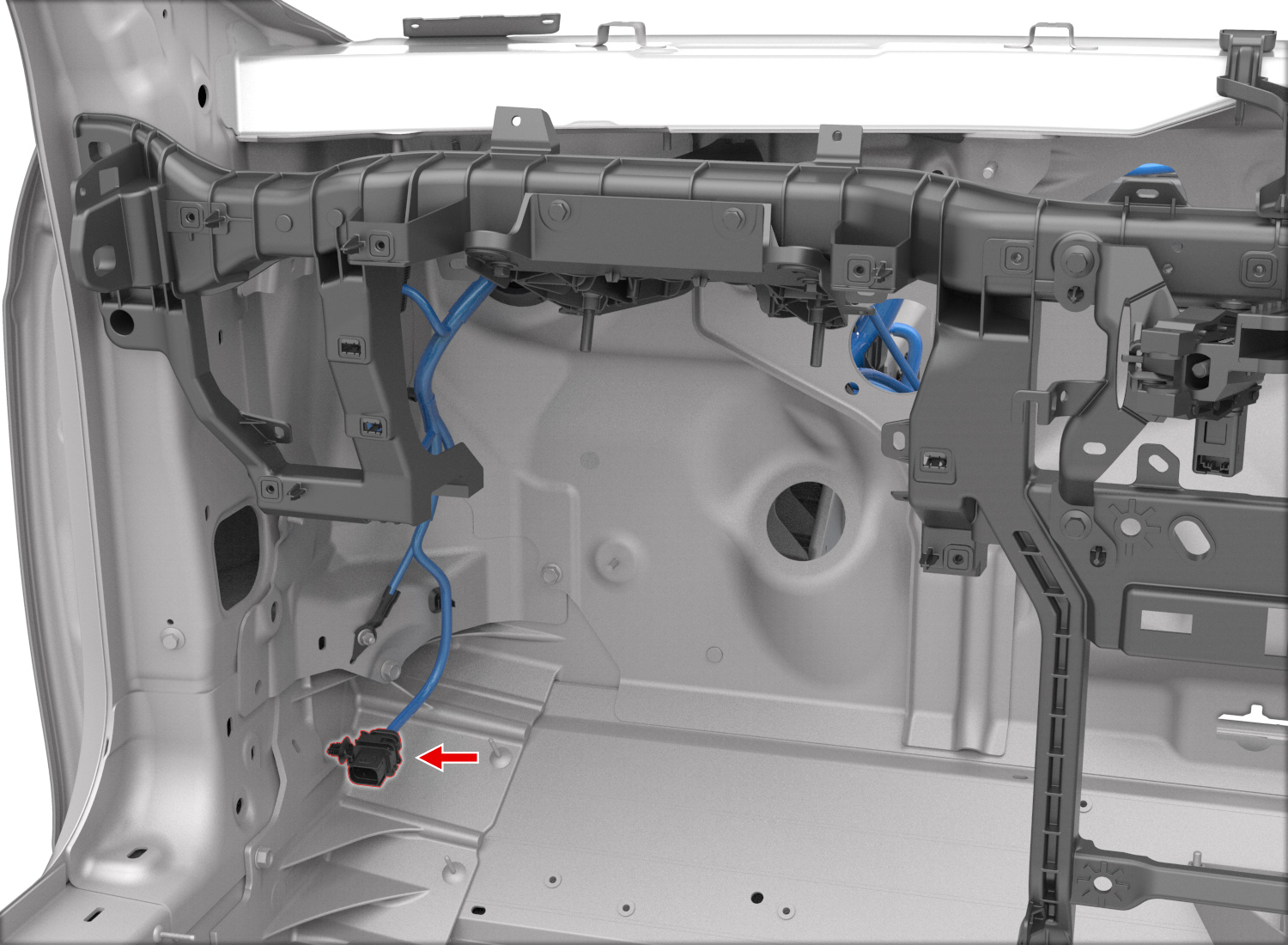

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | AMP | 1-962919-1 | 5.8M | RD | 4 | AMP | 1394512-1 | X026 | 2 |
