X958F

Tesla Part Number
1775316-01-A
Connector
SUMITOMO 6098-9153
Color
GY

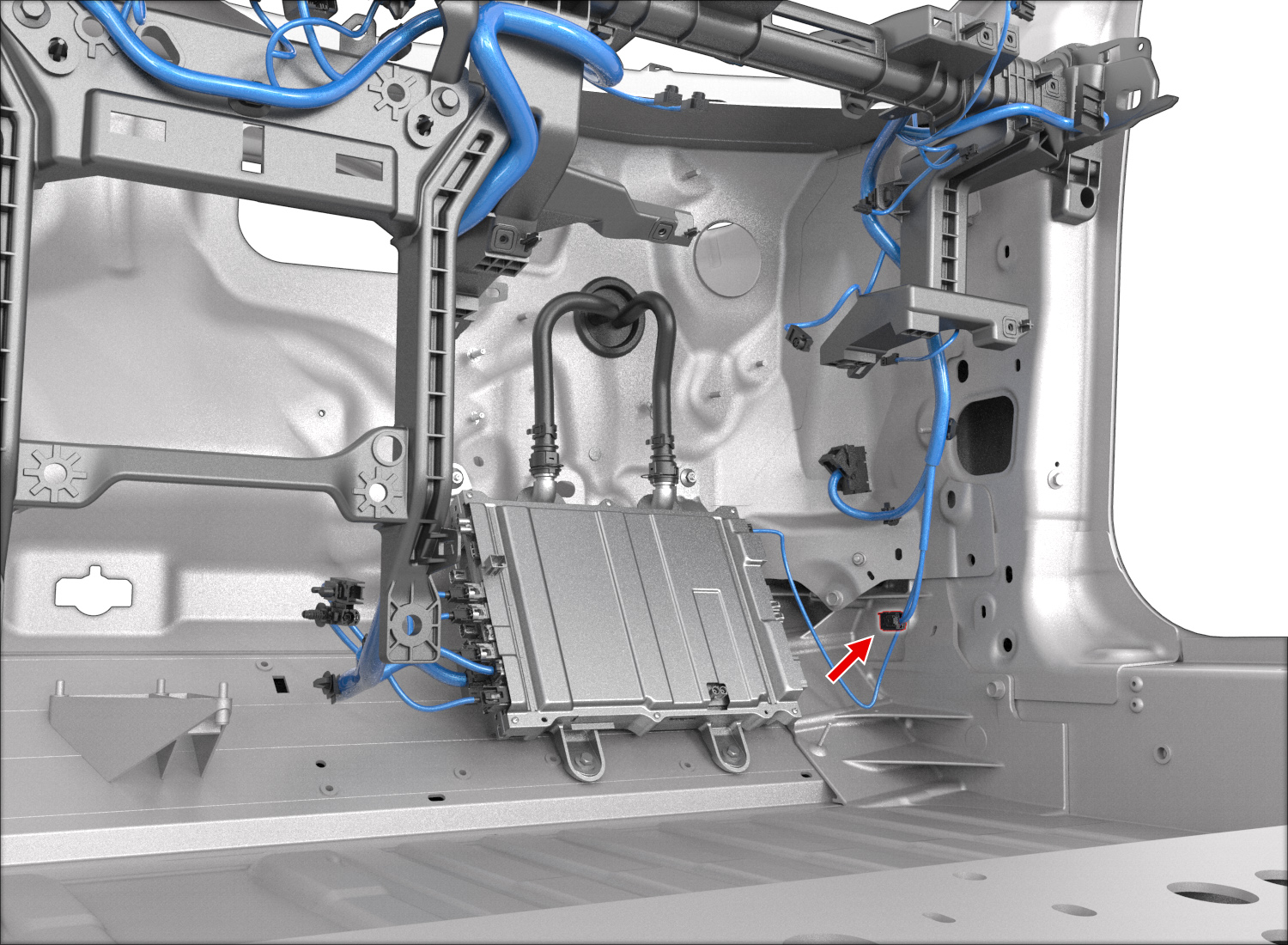

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8240-06291.2x0.6FBU/WH0.35X15017
2SUMITOMO8240-06291.2x0.6FBU0.35X15018
3unused
4unused
5SUMITOMO8240-06291.2x0.6FYE0.35X4554
6SUMITOMO8240-06291.2x0.6FGN/WH0.35X43713
7SUMITOMO8240-06291.2x0.6FGN0.35X43714
8unused
9unused
10unused
