X958M

Tesla Part Number
1775317-01-A
Connector
SUMITOMO 6098-9082
Color
GY

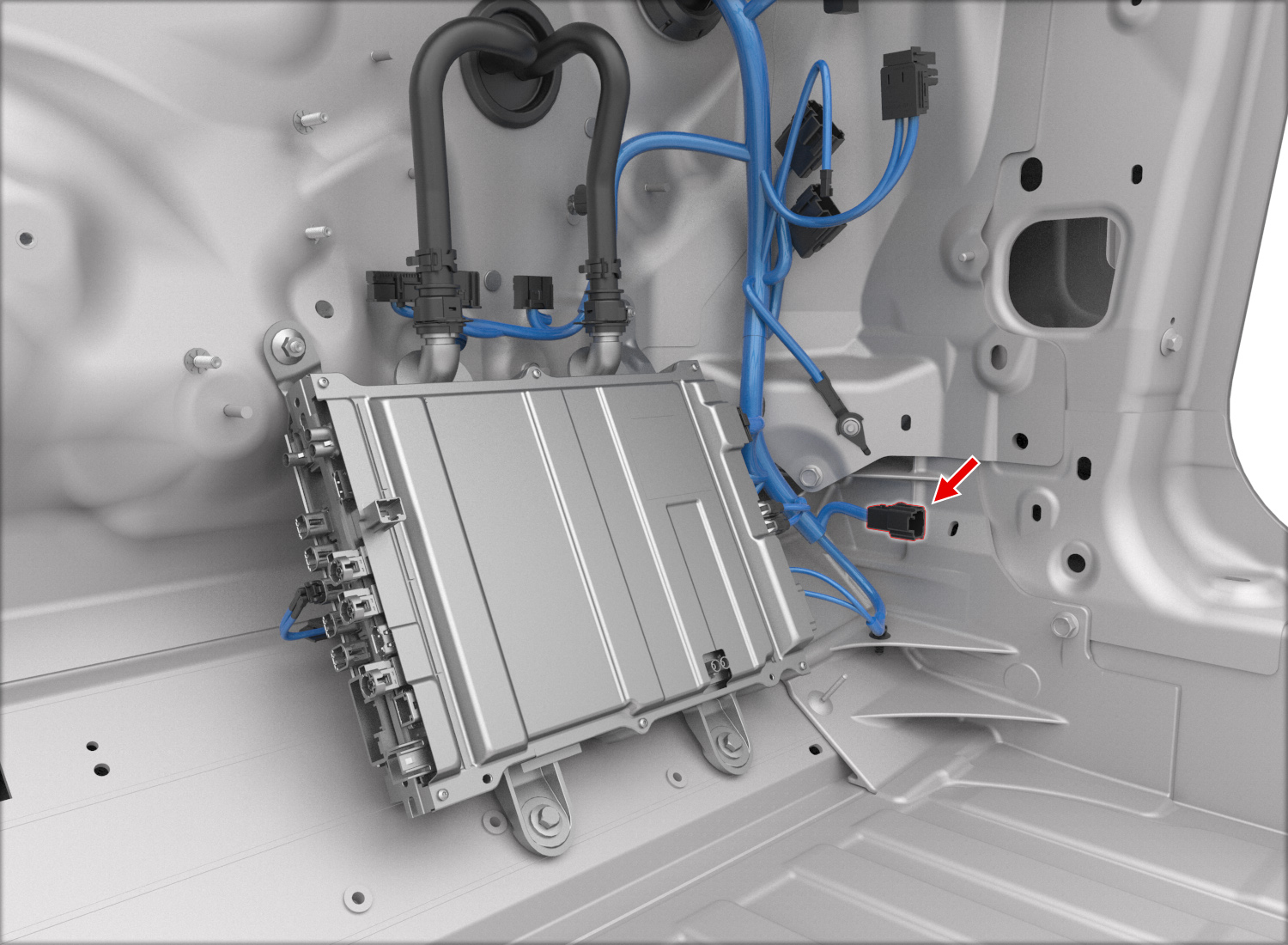

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8230-57521.2x0.6MBU/WH0.35
2SUMITOMO8230-57521.2x0.6MBU0.35
3unused
4unused
5SUMITOMO8230-57521.2x0.6MYE0.50X977M15
6SUMITOMO8230-57521.2x0.6MGN/WH0.35
7SUMITOMO8230-57521.2x0.6MGN0.35
8unused
9unused
10unused
