X960F

Tesla Part Number

1067989-00-A

Connector

MOLEX 33472-1606

Color

BK

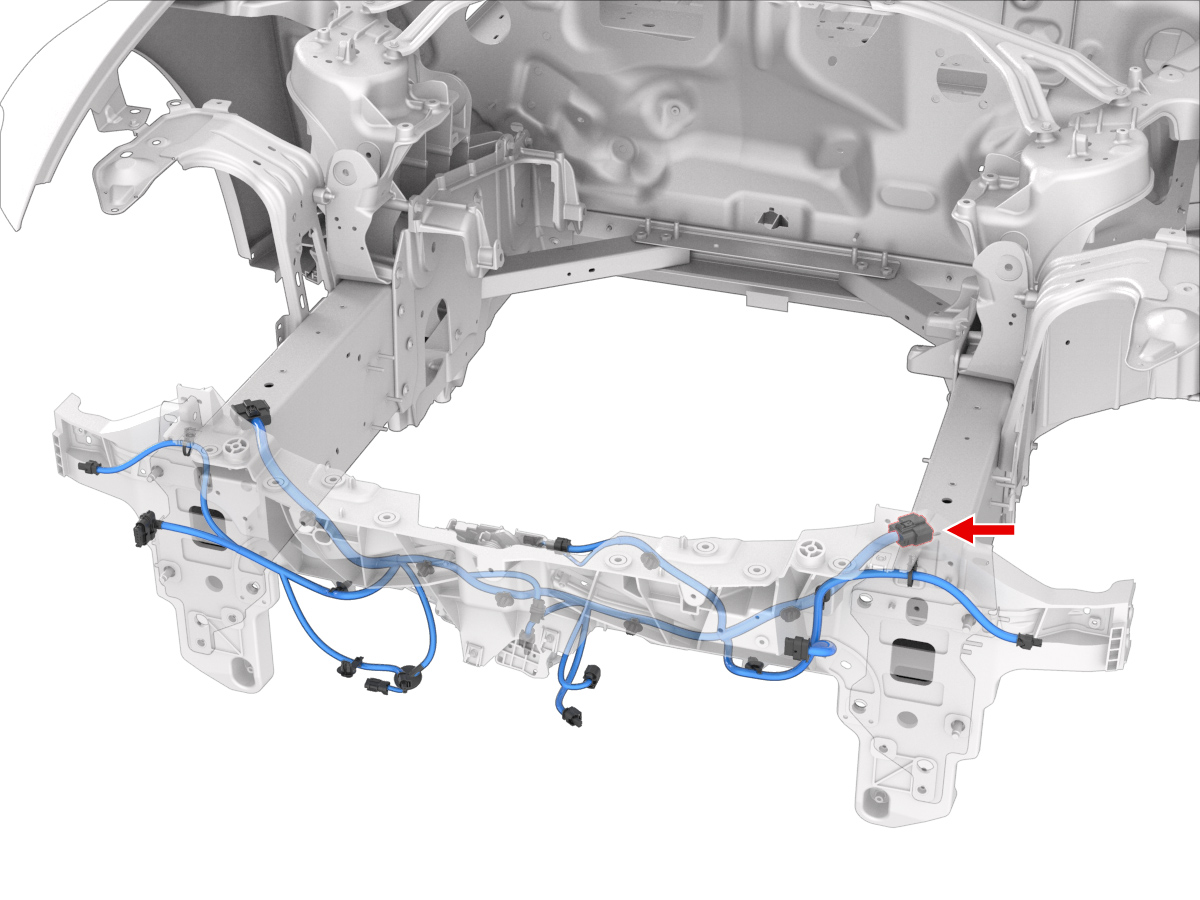

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X203	1
2	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240	X203	2
3	MOLEX	33012-3004	1.5x0.8F	BK	0.50	TESLA	MAT-120-240
4	unused
5	unused
6	unused
7	MOLEX	33012-3004	1.5x0.8F	BU/WH	0.35	TESLA	MAT-120-240	X138A	2
8	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X138A	3
9	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X242	1
10	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X242	2
11	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X383	3
12	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X383	1
13	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X379	1
14	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X379	3
15	unused
16	unused
