X960M

Tesla Part Number

1029115-00-B

Connector

MOLEX 33482-8601

Color

BK

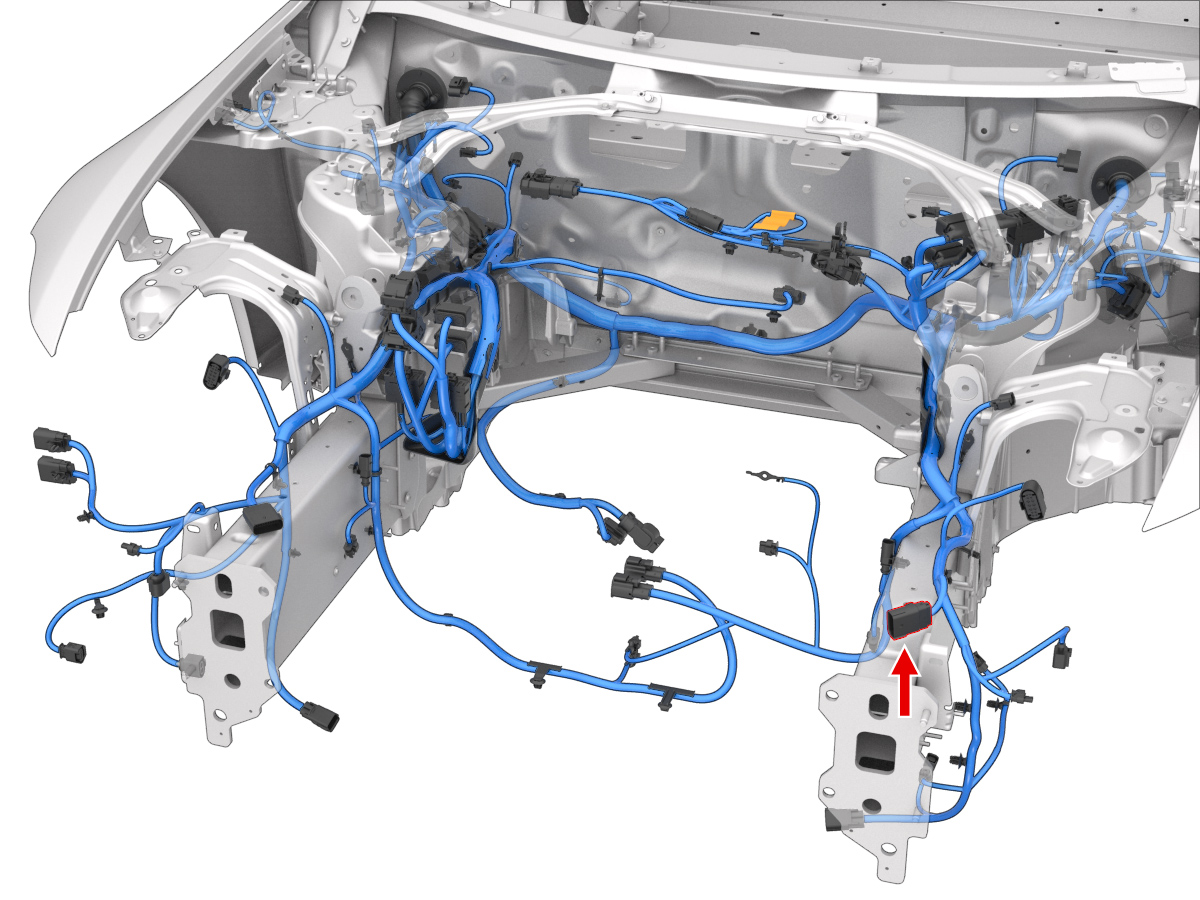

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X037	8
2	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X037	9
3	MOLEX	33000-0004	1.5x0.8M	BK	0.50	TESLA	MAT-120-240	G500	9
4	unused
5	unused
6	unused
7	MOLEX	33000-0004	1.5x0.8M	BU/WH	0.35	TESLA	MAT-120-240
8	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240
9	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240
10	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240
11	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X010	H3
12	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X010	J3
13	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X010	J2
14	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X010	H5
15	unused
16	unused
