X964M

Tesla Part Number

1055685-00-A

Connector

MOLEX 33482-2101

Color

BK

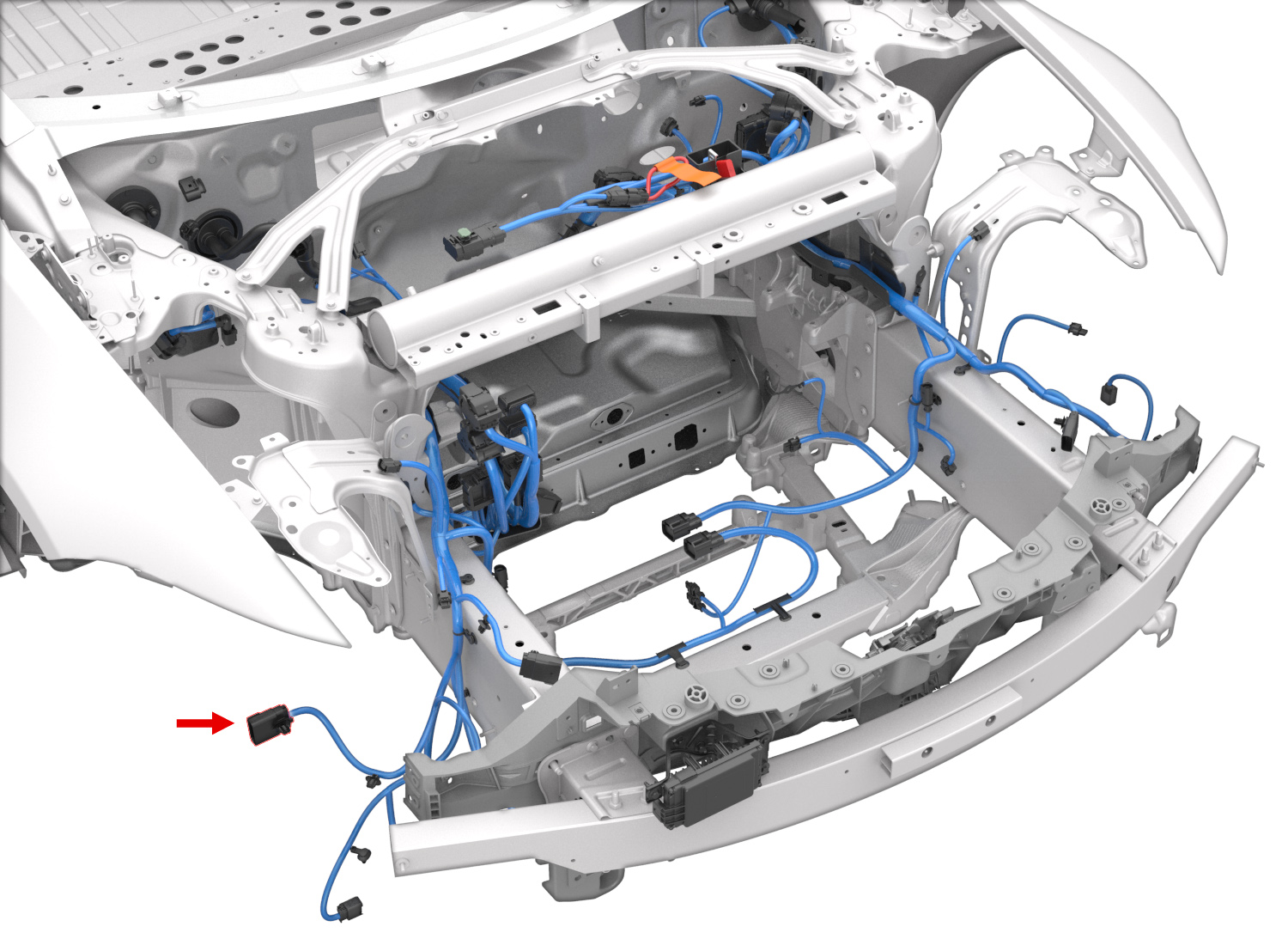

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0001	1.5x0.8M	BK	1.50	TESLA	MAT-120-240	G510	3
2	MOLEX	33000-0004	1.5x0.8M	GN	0.50	TESLA	MAT-120-240	X010	E3
3	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240
4	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240
5	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X011	50
6	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X978M	2
7	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X978M	3
8	unused
9	MOLEX	33000-0002	1.5x0.8M	BU	0.75	TESLA	MAT-120-240	X978M	10
10	MOLEX	33000-0002	1.5x0.8M	WH	0.75	TESLA	MAT-120-240	X978M	20
11	MOLEX	33000-0002	1.5x0.8M	RD	1.00	TESLA	MAT-120-240	X010	A3
12	MOLEX	33000-0004	1.5x0.8M	YE	0.50	TESLA	MAT-120-240	X025	D4
13	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240
14	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240
15	unused
16	unused
17	unused
18	MOLEX	33000-0004	1.5x0.8M	GY	0.50	TESLA	MAT-120-240	X010	D4
19	MOLEX	33000-0004	1.5x0.8M	TN	0.50	TESLA	MAT-120-240	X025	C5
20	MOLEX	33000-0002	1.5x0.8M	GN	1.00	TESLA	MAT-120-240	X010	A5
