X968M

Tesla Part Number

1048098-00-A

Connector

YAZAKI 7286-1918

Color

WH

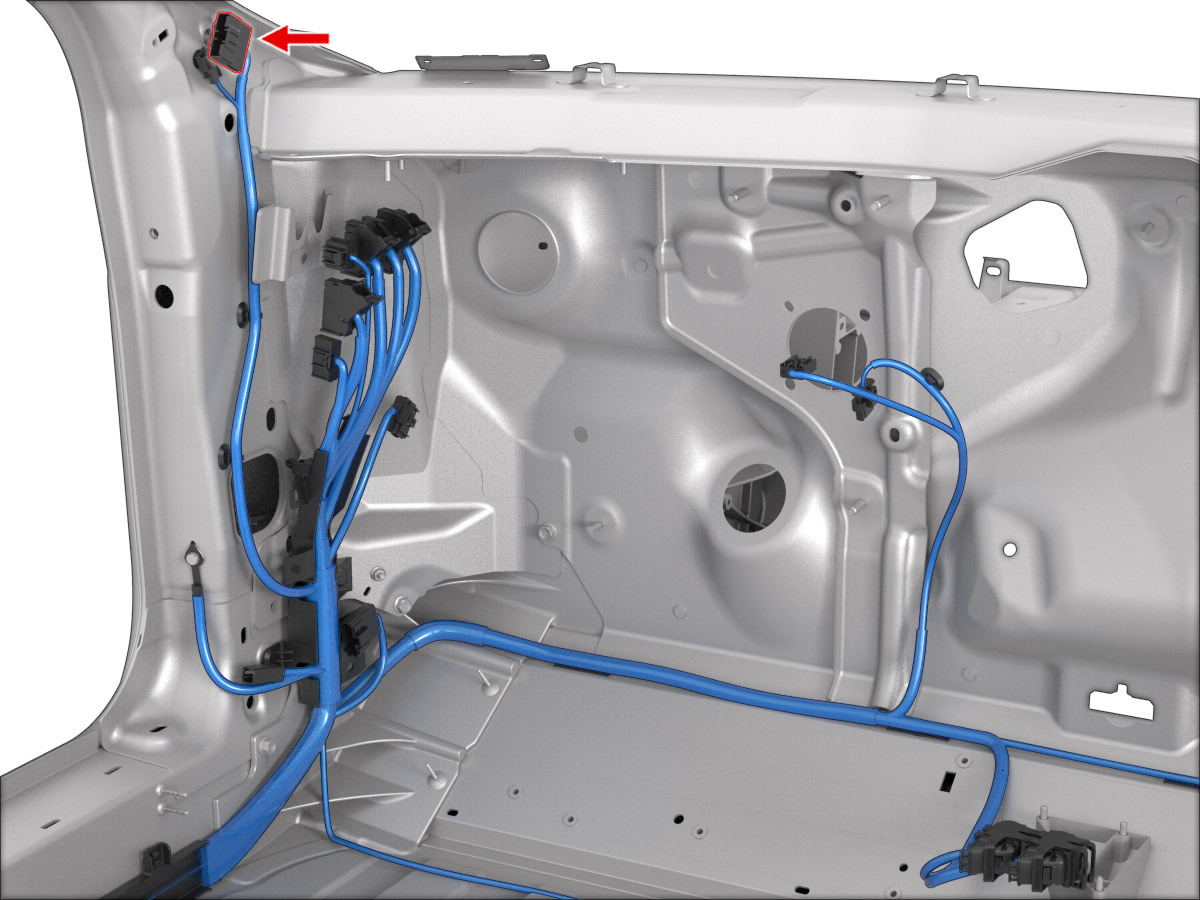

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	YE	0.50			X986M	5
2	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X031	8
3	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X031	27
4	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X031	28
5	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X031	10
6	unused
7	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X976F	17
8	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X976F	16
9	unused
10	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			G660	1
11	unused
12	unused
13	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X039	6
14	SUMITOMO	8230-4925	1.5x0.6M	BU	0.50			X986M	1
15	SUMITOMO	8230-4925	1.5x0.6M	BN	0.50			X986M	6
16	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X031	25
17	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X031	23
18	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X031	26
19	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X031	9
20	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X986M	4
21	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X986M	3
22	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			G660	1
23	unused
24	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X031	20
25	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X038B	5
26	SUMITOMO	8230-4925	1.5x0.6M	BN	0.50			X986M	2
