X972M

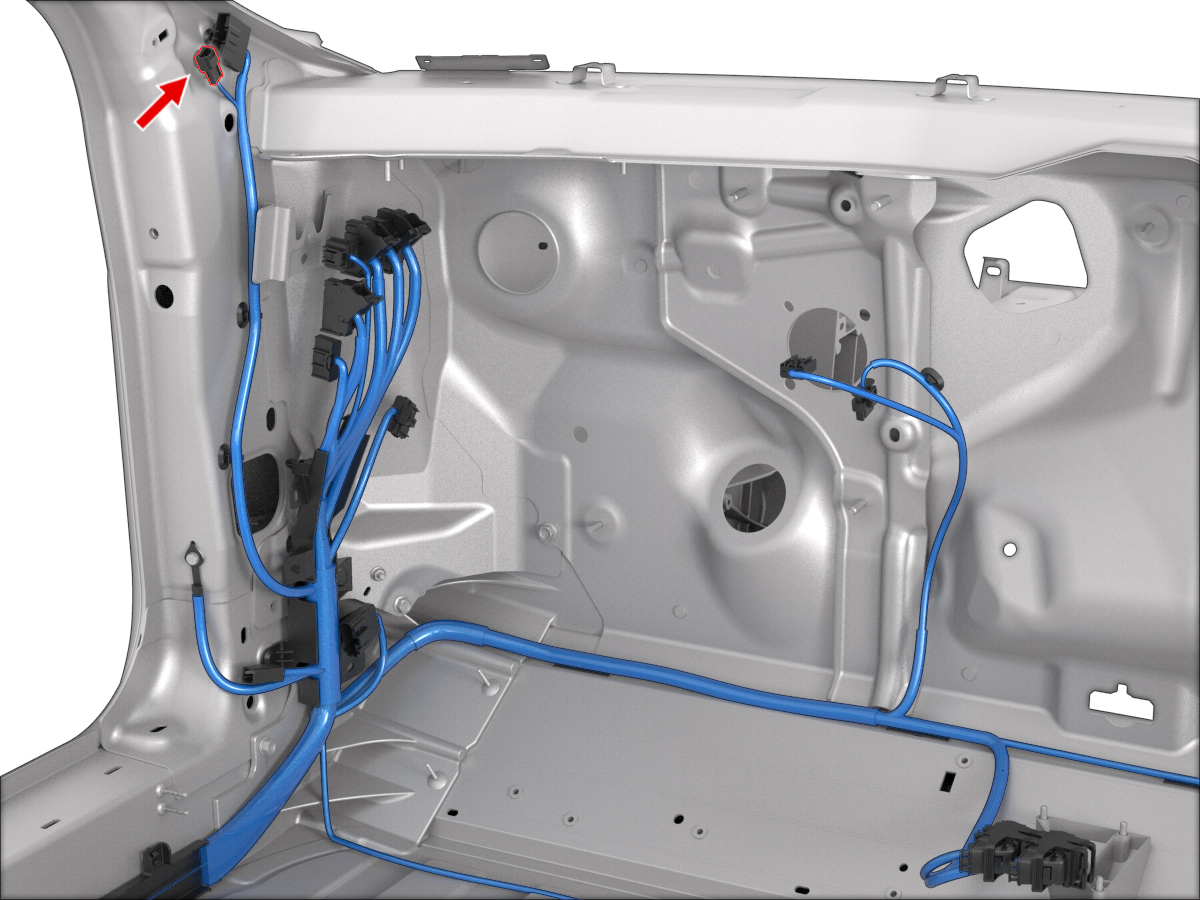

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-963716-1 | 0.63x0.63M | GN | 0.50 | X986M | 11 | ||
| 2 | AMP | 5-963716-1 | 0.63x0.63M | GY | 0.50 | X986M | 12 | ||
| 3 | AMP | 5-963716-1 | 0.63x0.63M | VT | 0.50 | X986M | 9 | ||
| 4 | AMP | 5-963716-1 | 0.63x0.63M | WH | 0.50 | X986M | 10 |
