X975M

Tesla Part Number

1051431-00-A

Connector

MOLEX 34986-1602

Color

GY

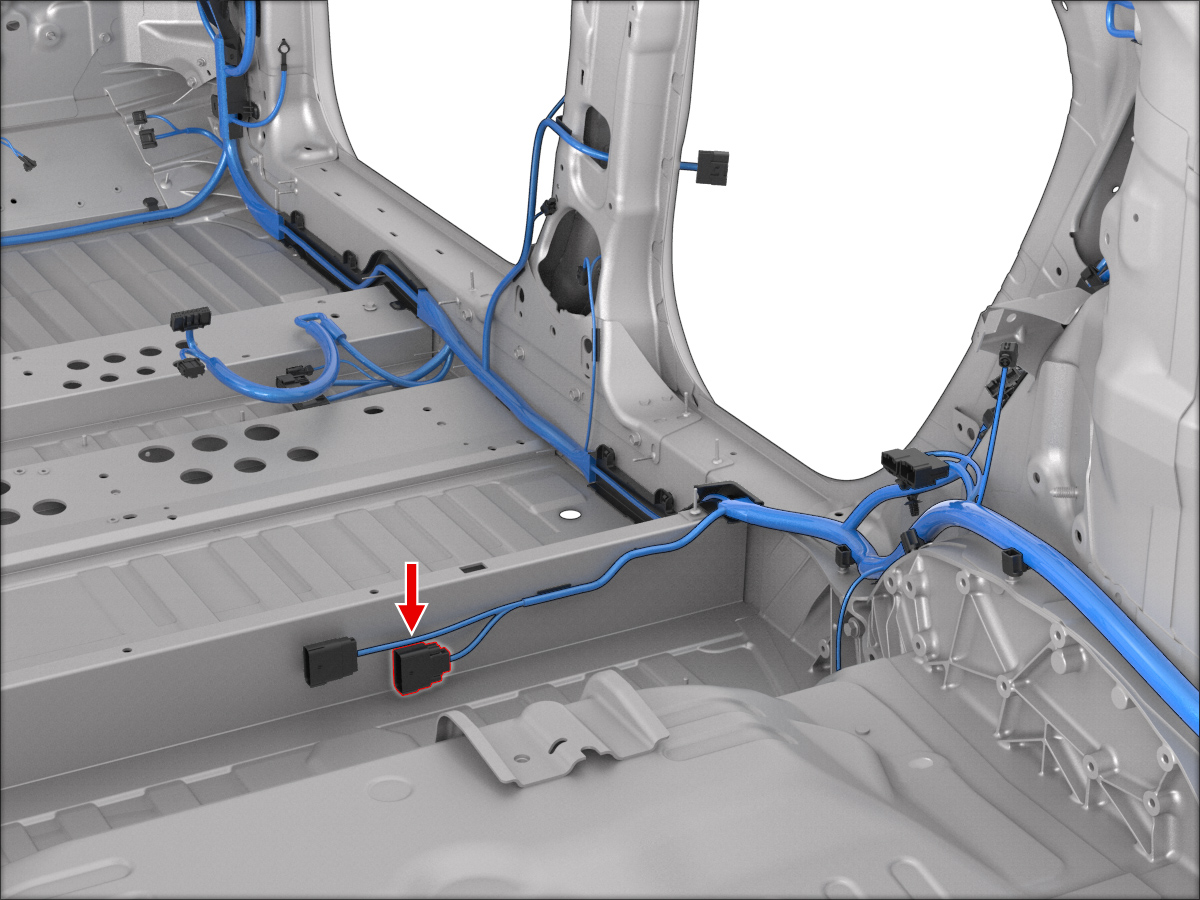

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1326031-4	2.8x0.8MS	WH	1.50	YAZAKI	7158-3112-70	X447	8
2	MOLEX	33000-0004	1.5x0.8M	GN/WH	0.35	TESLA	MAT-120-240	X978F	14
3	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X978F	15
4	MOLEX	33000-0004	1.5x0.8M	RD	0.50	TESLA	MAT-120-240	X391	4
5	MOLEX	33000-0004	1.5x0.8M	WH	0.50	TESLA	MAT-120-240	X391	7
6	MOLEX	33000-0004	1.5x0.8M	BU	0.50	TESLA	MAT-120-240	X391	6
7	MOLEX	33000-0004	1.5x0.8M	BN	0.50	TESLA	MAT-120-240	X391	5
8	AMP	1326031-5	2.8x0.8MS	YE	2.00	YAZAKI	7158-3113-40	X391	2
9	AMP	1326031-4	2.8x0.8MS	VT	1.50	YAZAKI	7158-3112-70	X447	7
10	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X219	1
11	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X219	2
12	unused
13	unused
14	unused
15	unused
16	AMP	1326031-5	2.8x0.8MS	BU	2.00	YAZAKI	7158-3113-40	X391	9
