X978F

Tesla Part Number

1486226-01-A

Connector

DELPHI 33239500

Color

NA

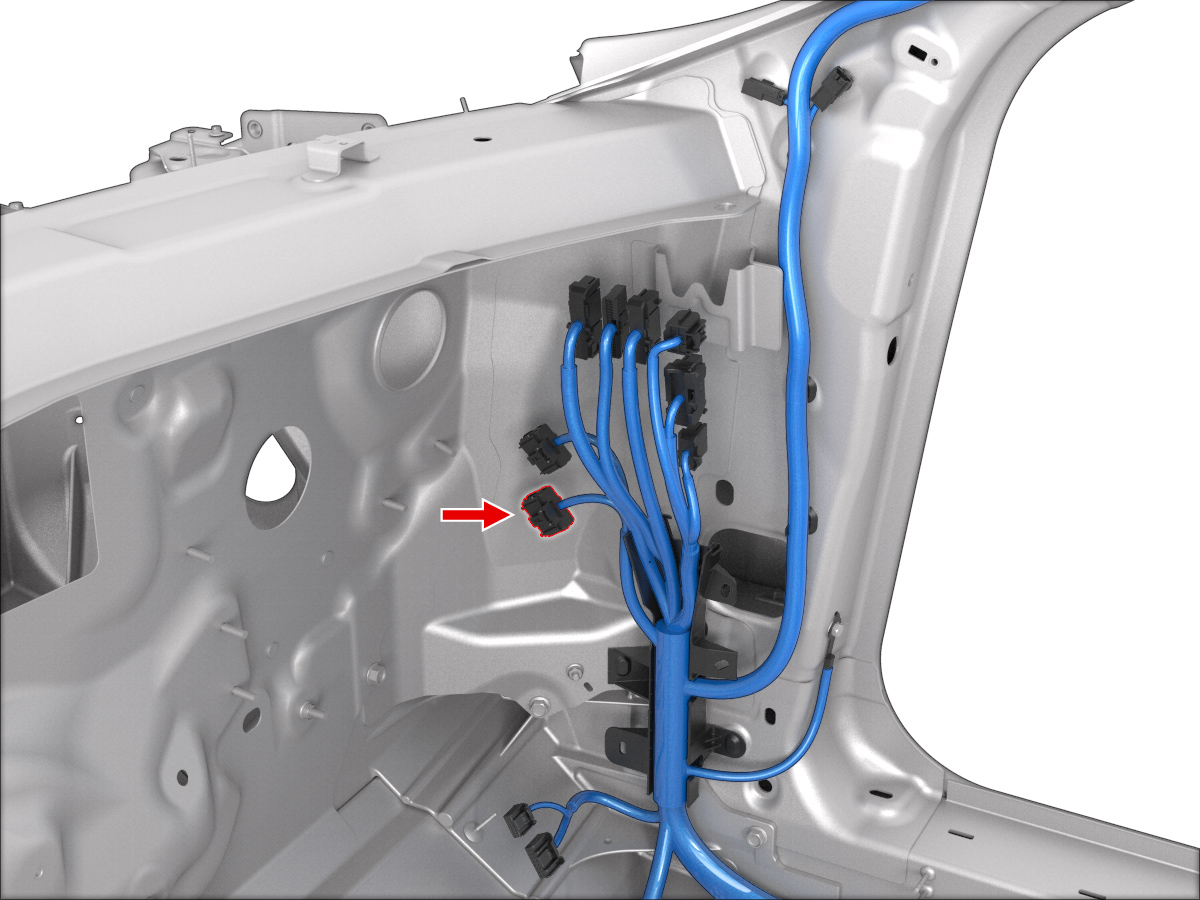

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072405	1.2x0.6F	VT	1.00			X050B	5
2	DELPHI	35410019	1.2x0.6F	GY	0.35			X488	14
3	DELPHI	35410019	1.2x0.6F	VT	0.35			X488	16
4	DELPHI	35410019	1.2x0.6F	RD	0.35			X986F	7
5	DELPHI	35410019	1.2x0.6F	WH	0.35			X986F	8
6	DELPHI	35410019	1.2x0.6F	GY	0.35			X986F	15
7	DELPHI	35410019	1.2x0.6F	BN	0.35			X986F	16
8	unused
9	unused
10	DELPHI	35072403	1.2x0.6F	BU	0.50			X454	13
11	DELPHI	35072403	1.2x0.6F	YE	0.50			X987F	15
12	DELPHI	35410019	1.2x0.6F	BU/WH	0.35			X400	6
13	DELPHI	35410019	1.2x0.6F	BU	0.35			X400	5
14	DELPHI	35410019	1.2x0.6F	GN/WH	0.35			X975M	2
15	DELPHI	35410019	1.2x0.6F	GN	0.35			X975M	3
16	DELPHI	35072403	1.2x0.6F	BU	0.50			X993M	10
17	DELPHI	35072403	1.2x0.6F	YE	0.50			X993M	11
18	unused
19	unused
20	DELPHI	35072403	1.2x0.6F	GY	0.50			X454	14
