X978M

Tesla Part Number

1486227-01-A

Connector

DELPHI 33239519

Color

NA

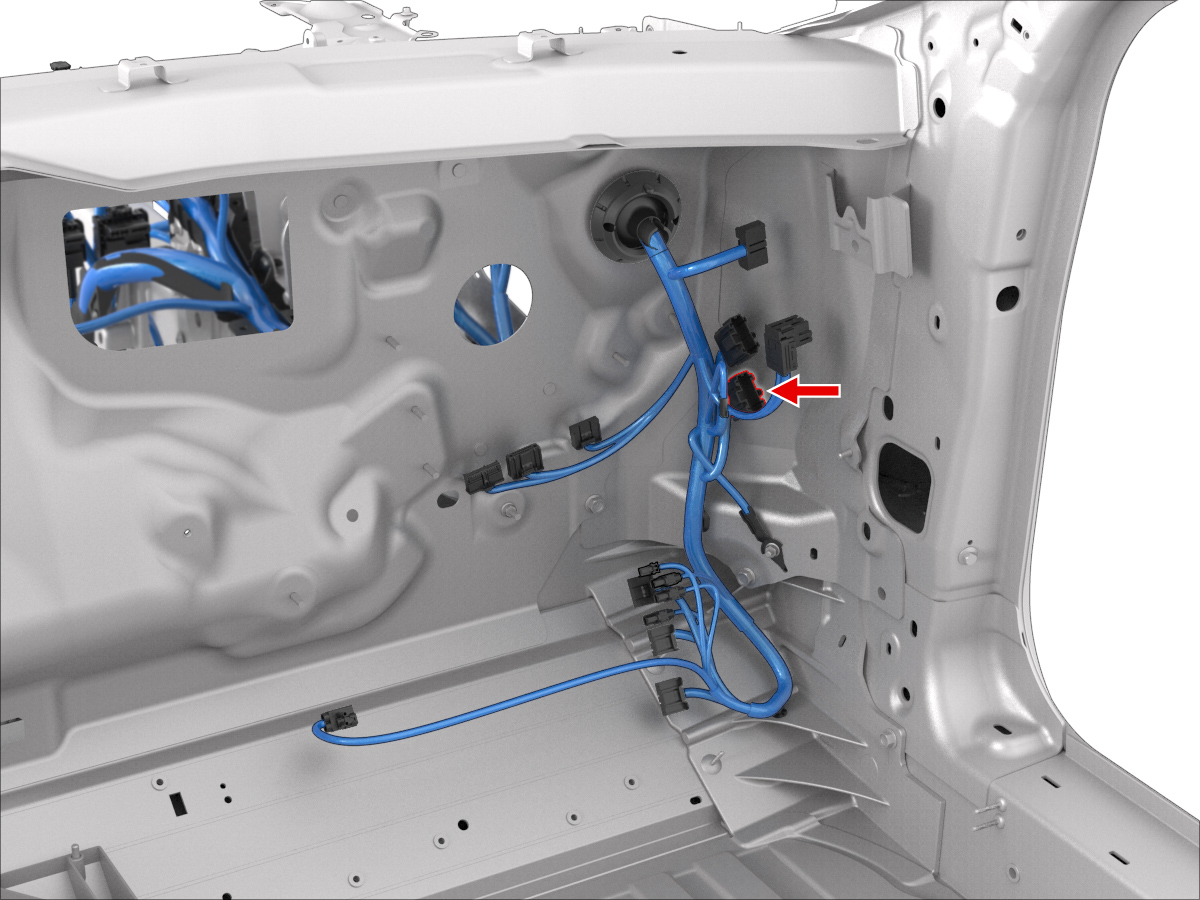

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35091061	1.2x0.6M	VT	1.00			X535	4
2	DELPHI	35412744	1.2x0.6M	GY	0.35			X964M	6
3	DELPHI	35412744	1.2x0.6M	VT	0.35			X964M	7
4	DELPHI	35412744	1.2x0.6M	RD	0.35			X966M	5
5	DELPHI	35412744	1.2x0.6M	WH	0.35			X966M	6
6	DELPHI	35412744	1.2x0.6M	GY	0.35			X211	1
7	DELPHI	35412744	1.2x0.6M	BN	0.35			X211	2
8	unused
9	unused
10	DELPHI	35091061	1.2x0.6M	BU	0.75			X964M	9
11	DELPHI	35091062	1.2x0.6M	YE	0.50			X535	1
12	DELPHI	35412744	1.2x0.6M	BU/WH	0.35
13	DELPHI	35412744	1.2x0.6M	BU	0.35
14	DELPHI	35412744	1.2x0.6M	GN/WH	0.35
15	DELPHI	35412744	1.2x0.6M	GN	0.35
16	DELPHI	35091062	1.2x0.6M	BU	0.50			X106	17
17	DELPHI	35091062	1.2x0.6M	YE	0.50			X106	29
18	unused
19	unused
20	DELPHI	35091061	1.2x0.6M	WH	0.75			X964M	10
