X986M

Tesla Part Number

1029115-00-B

Connector

MOLEX 33482-8601

Color

BK

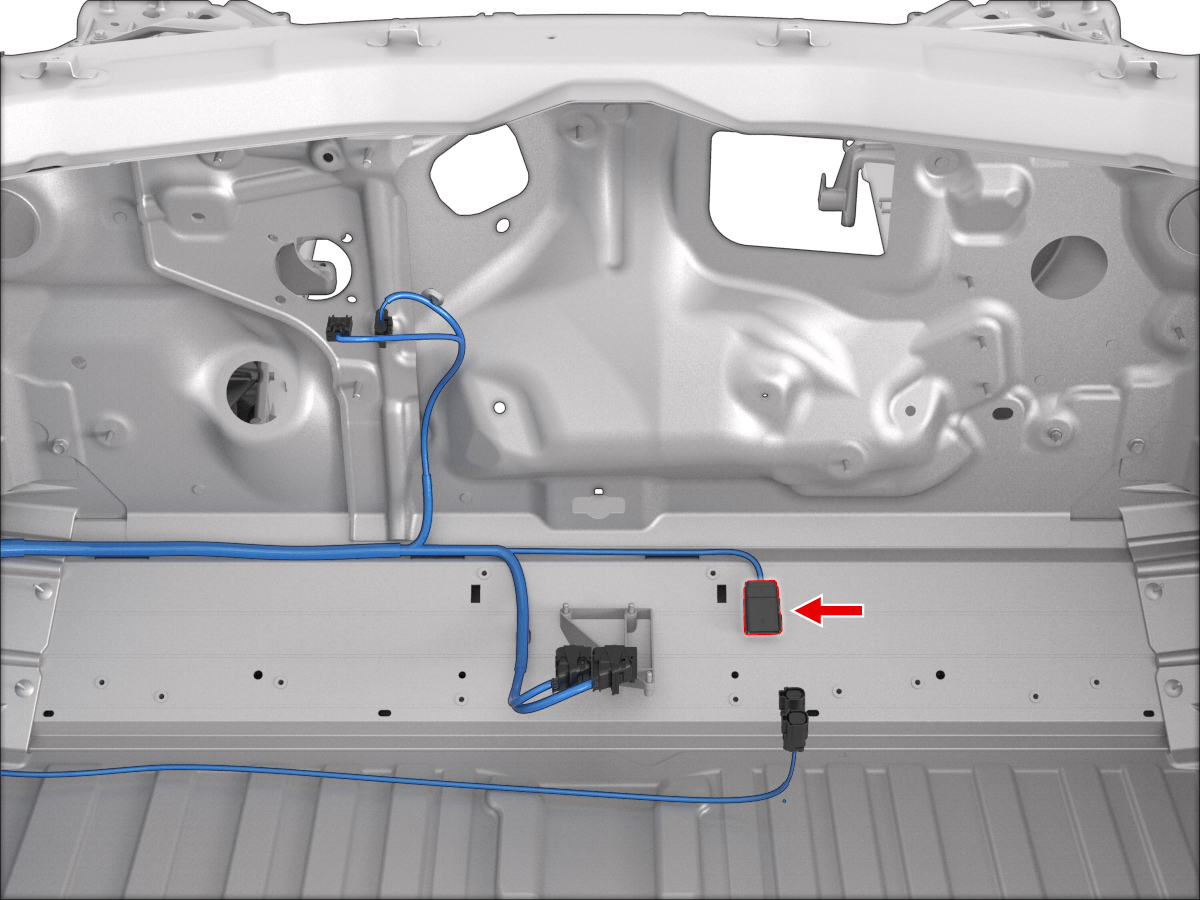

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	BU	0.50	TESLA	MAT-120-240	X968M	14
2	MOLEX	33000-0004	1.5x0.8M	BN	0.50	TESLA	MAT-120-240	X968M	26
3	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X968M	21
4	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X968M	20
5	MOLEX	33000-0004	1.5x0.8M	YE	0.50	TESLA	MAT-120-240	X968M	1
6	MOLEX	33000-0004	1.5x0.8M	BN	0.50	TESLA	MAT-120-240	X968M	15
7	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X201	47
8	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X201	48
9	MOLEX	33000-0004	1.5x0.8M	VT	0.50	TESLA	MAT-120-240	X972M	3
10	MOLEX	33000-0004	1.5x0.8M	WH	0.50	TESLA	MAT-120-240	X972M	4
11	MOLEX	33000-0004	1.5x0.8M	GN	0.50	TESLA	MAT-120-240	X972M	1
12	MOLEX	33000-0004	1.5x0.8M	GY	0.50	TESLA	MAT-120-240	X972M	2
13	MOLEX	33000-0004	1.5x0.8M	BK	0.50	TESLA	MAT-120-240	X032	3
14	MOLEX	33000-0004	1.5x0.8M	RD	0.50	TESLA	MAT-120-240	X032	4
15	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X200	44
16	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X200	43
