X988F

Tesla Part Number

1861818-00-A

Connector

MOLEX 33472-2682

Color

BK

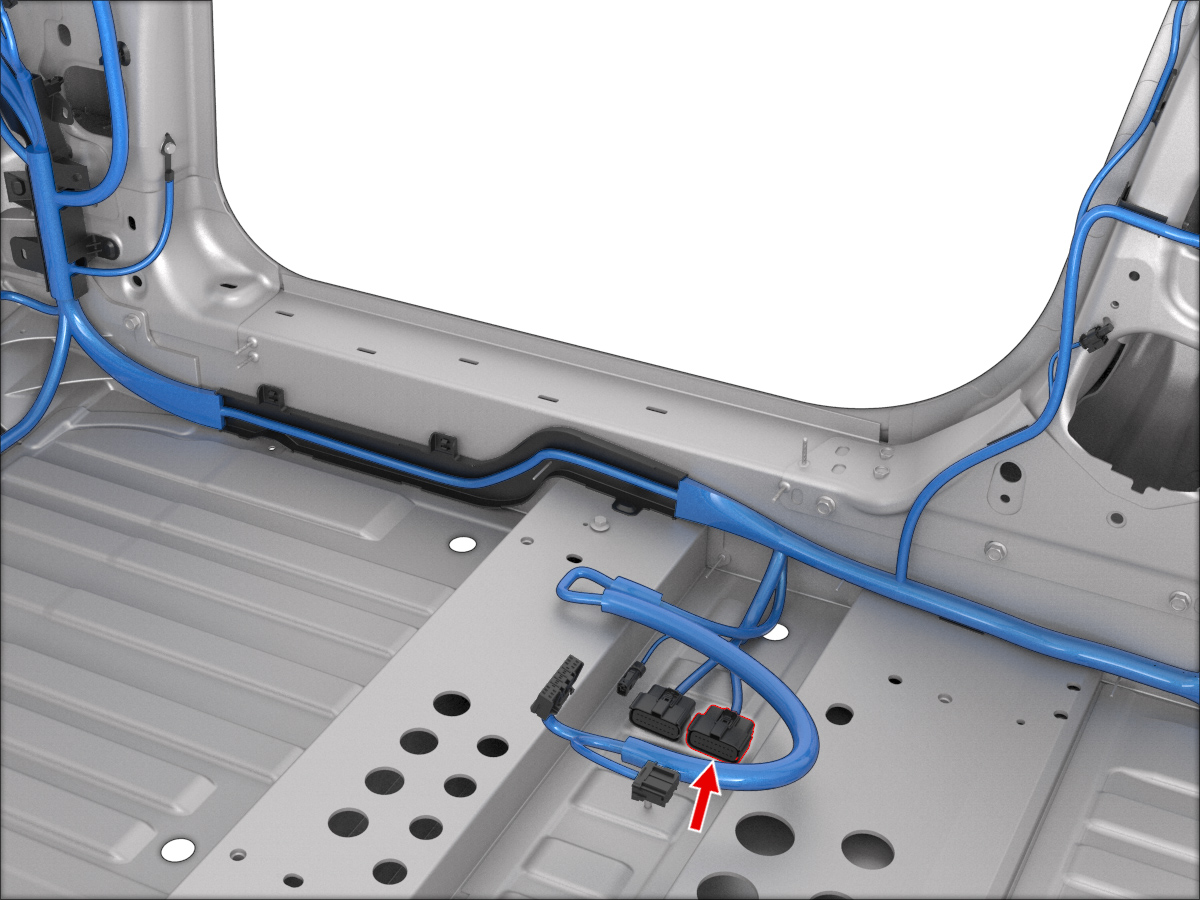

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X488	19
2	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X488	17
3	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X488	18
4	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X488	20
5	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X488	8
6	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X488	6
7	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X051	40
8	unused
9	unused
10	unused
11	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X1001	1
12	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X1001	2
13	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X051	27
14	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X051	28
15	unused
16	unused
17	unused
18	unused
19	unused
20	unused
