X012

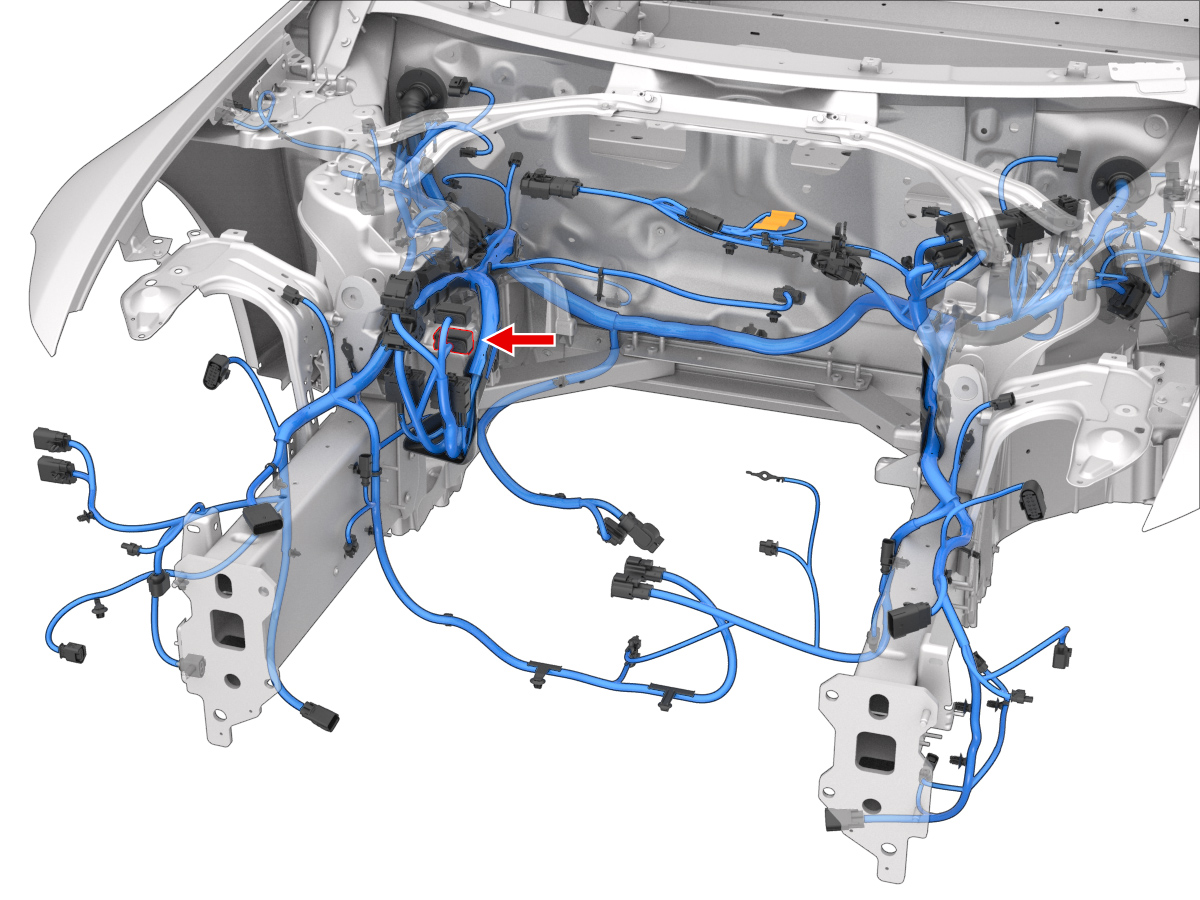

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1241418-4 | 6.3x0.8F | RD | 4.00 | AMP | 1394512-1 | X117 | 1 |
| 2 | AMP | 1241414-1 | 6.3x0.8F | VT | 2.0 | AMP | 1394511-1 | ||
| 3 | AMP | 1241414-1 | 6.3x0.8F | WH | 2.50 | AMP | 1823111-1 | X562 | 4 |
| 4 | AMP | 1241418-4 | 6.3x0.8F | YE | 4.00 | AMP | 1394512-1 | X452 | 7 |
