X050A

Tesla Part Number

1506907-02-A

Connector

SUMITOMO 6098-8950

Color

WH

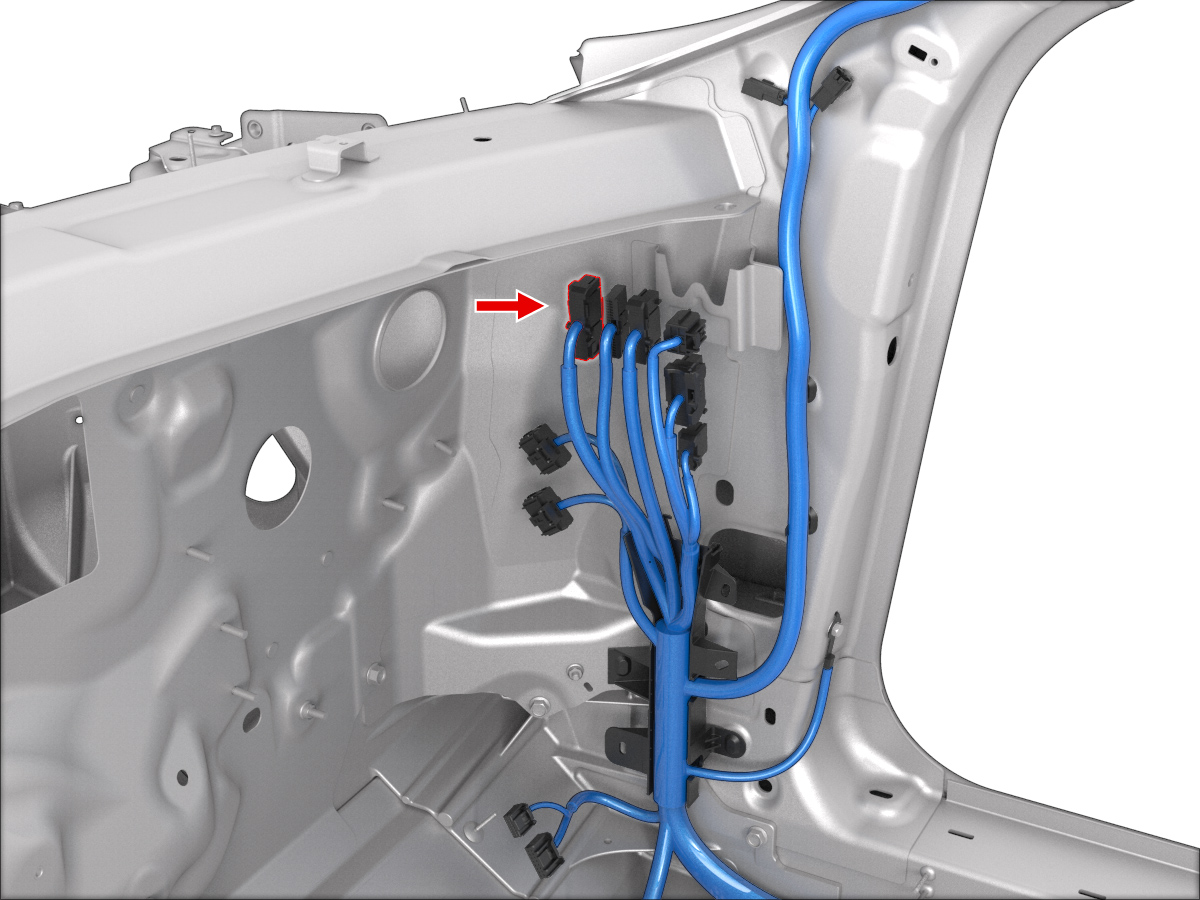

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X921M	14
2	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X921M	6
3	unused
4	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X921M	5
5	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X272	3
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X272	2
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X921M	12
8	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X909M	8
9	unused
10	unused
11	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35			X978F	14
12	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X978F	15
13	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X921M	7
14	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X921M	13
15	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X272	1
16	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X909M	17
17	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X909M	18
18	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X909M	6
19	unused
20	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X909M	7
21	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X909M	16
22	unused
23	unused
24	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35			X975M	2
25	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X975M	3
26	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X921M	2
27	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50			X921M	3
28	unused
29	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X096	1
30	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X977F	5
31	SUMITOMO	8240-0214	1.5x0.64F	VT	1.50			X976M	1
32	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50			X976M	11
