X071

Tesla Part Number
1037895-00-A
Connector
AMP 1379029-1
Color
BK

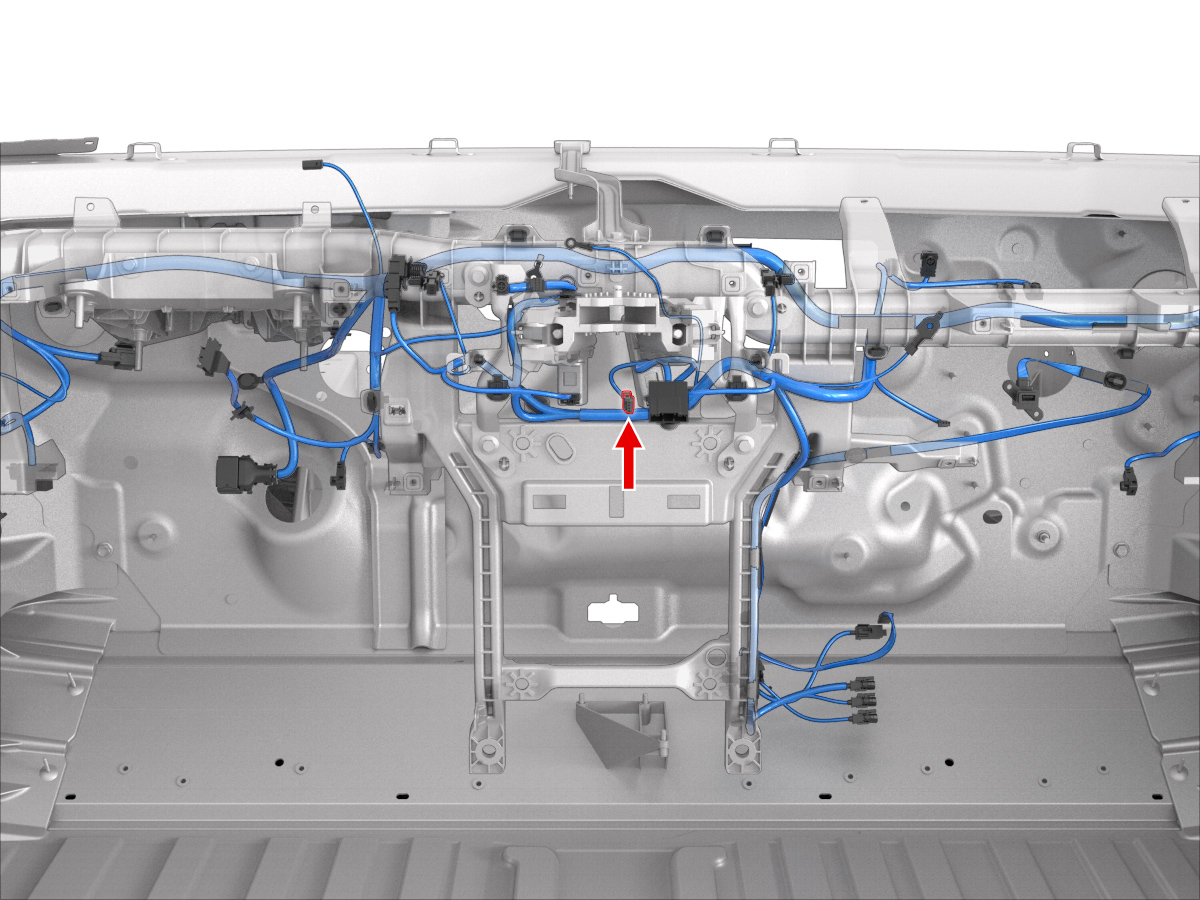

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FWH0.35X05526
2AMP5-928999-10.63x0.63FBN0.35X05510
3AMP5-928999-10.63x0.63FBU0.35X0559
4AMP5-928999-10.63x0.63FBK0.35X05525
