X075

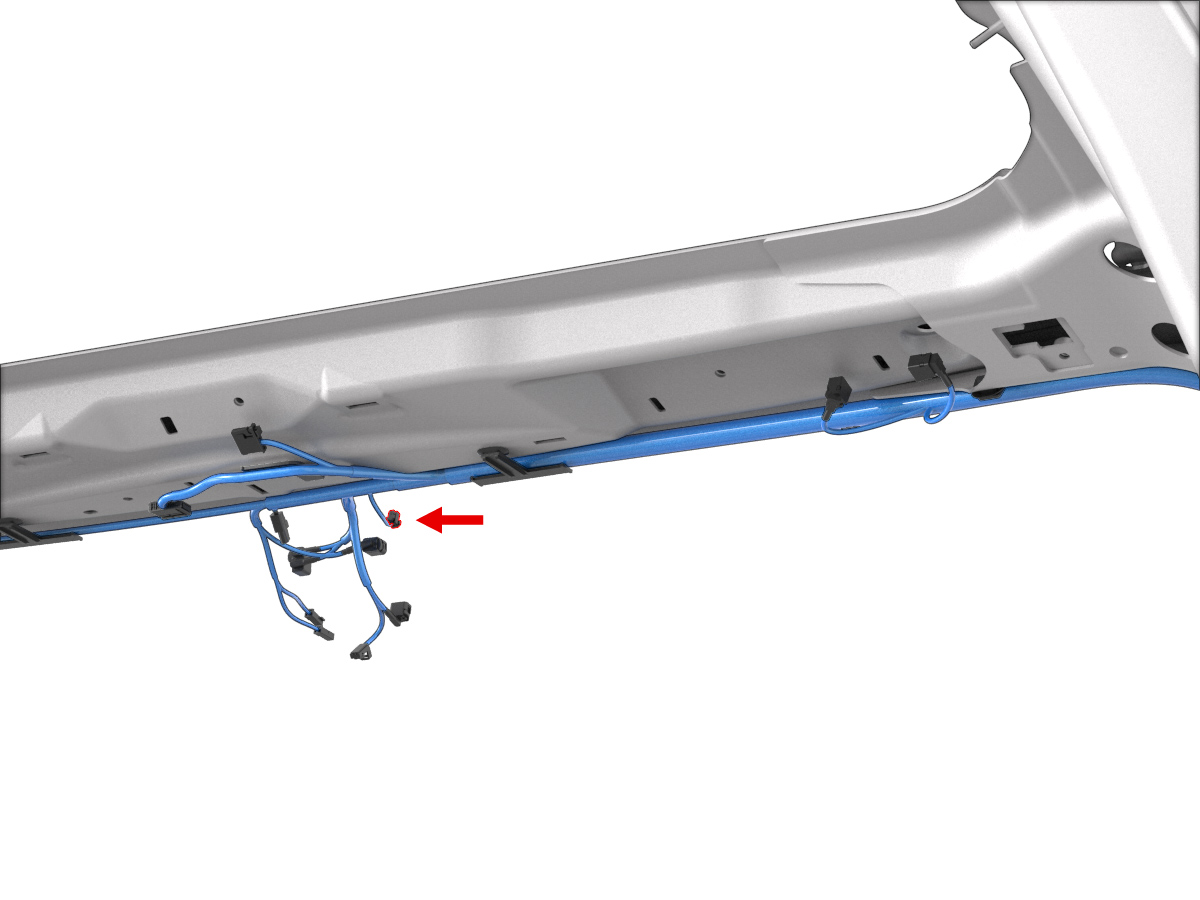

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 5055721000 | 0.50x0.50F | WH | 0.35 | X051 | 24 | ||
| 2 | MOLEX | 5055721000 | 0.50x0.50F | BN | 0.35 | X062 | 5 | ||
| 3 | MOLEX | 5055721000 | 0.50x0.50F | YE | 0.35 | X060B | 8 |
