X081

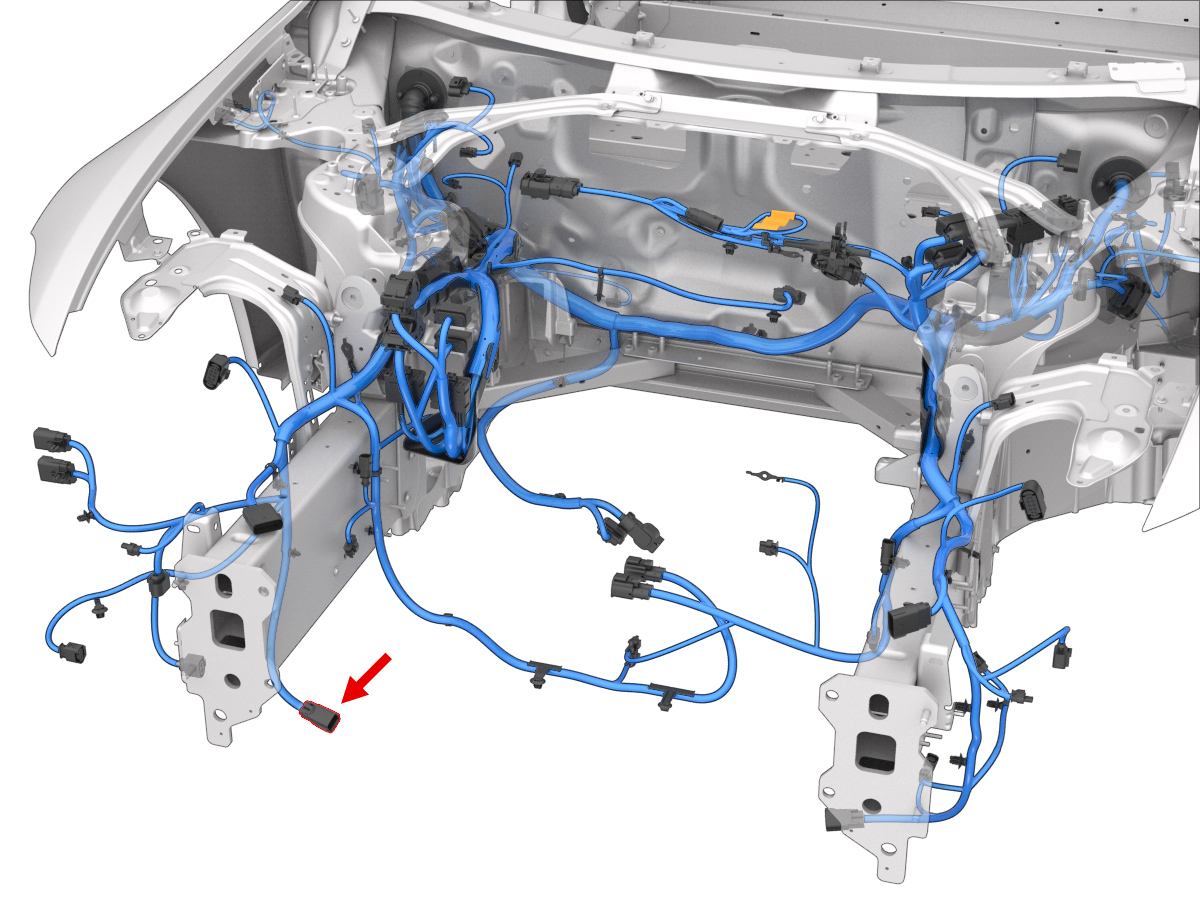

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7114-4143-02 | 6.3x0.8MS | WH | 6.00 | YAZAKI | 7158-3084-40 | X013 | 4 |
| 2 | YAZAKI | 7114-4143-02 | 6.3x0.8MS | BK | 6.00 | YAZAKI | 7158-3084-40 | X013 | 3 |
| 3 | YAZAKI | 7114-4143-02 | 6.3x0.8MS | RD | 6.00 | YAZAKI | 7158-3084-40 | X013 | 2 |
| 4 | YAZAKI | 7114-4140-02 | 6.3x0.8MS | BK | 0.50 | YAZAKI | 7158-3081-50 |
