X1019

Tesla Part Number
1102680-00-A
Connector
AMP 2-1241370-3
Color
WH

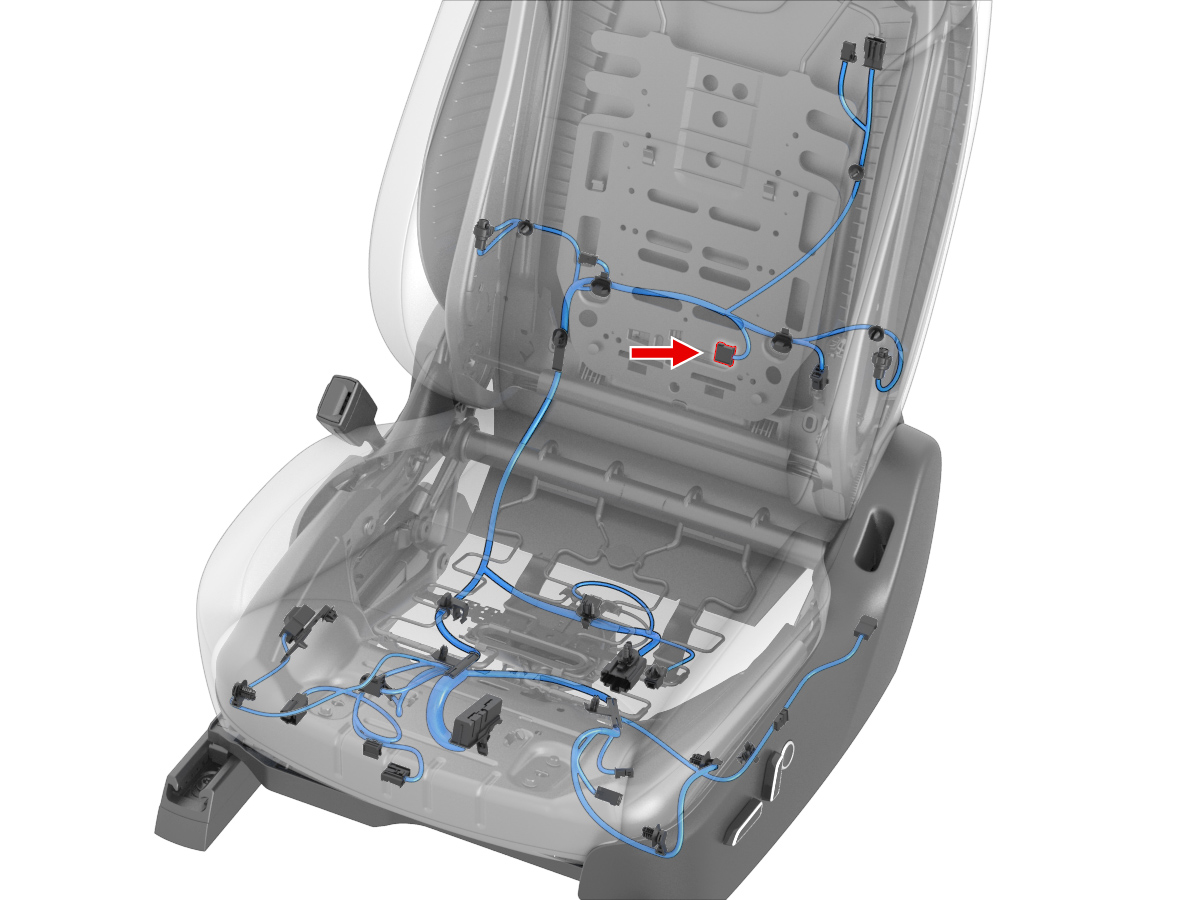

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FRD0.35X10029
2AMP5-928999-10.63x0.63FBN0.35X100231
3AMP5-928999-10.63x0.63FYE0.35X10271
4AMP5-928999-10.63x0.63FBK0.35X10273
5unused
6AMP5-928999-10.63x0.63FGN0.35X100242
