X1075

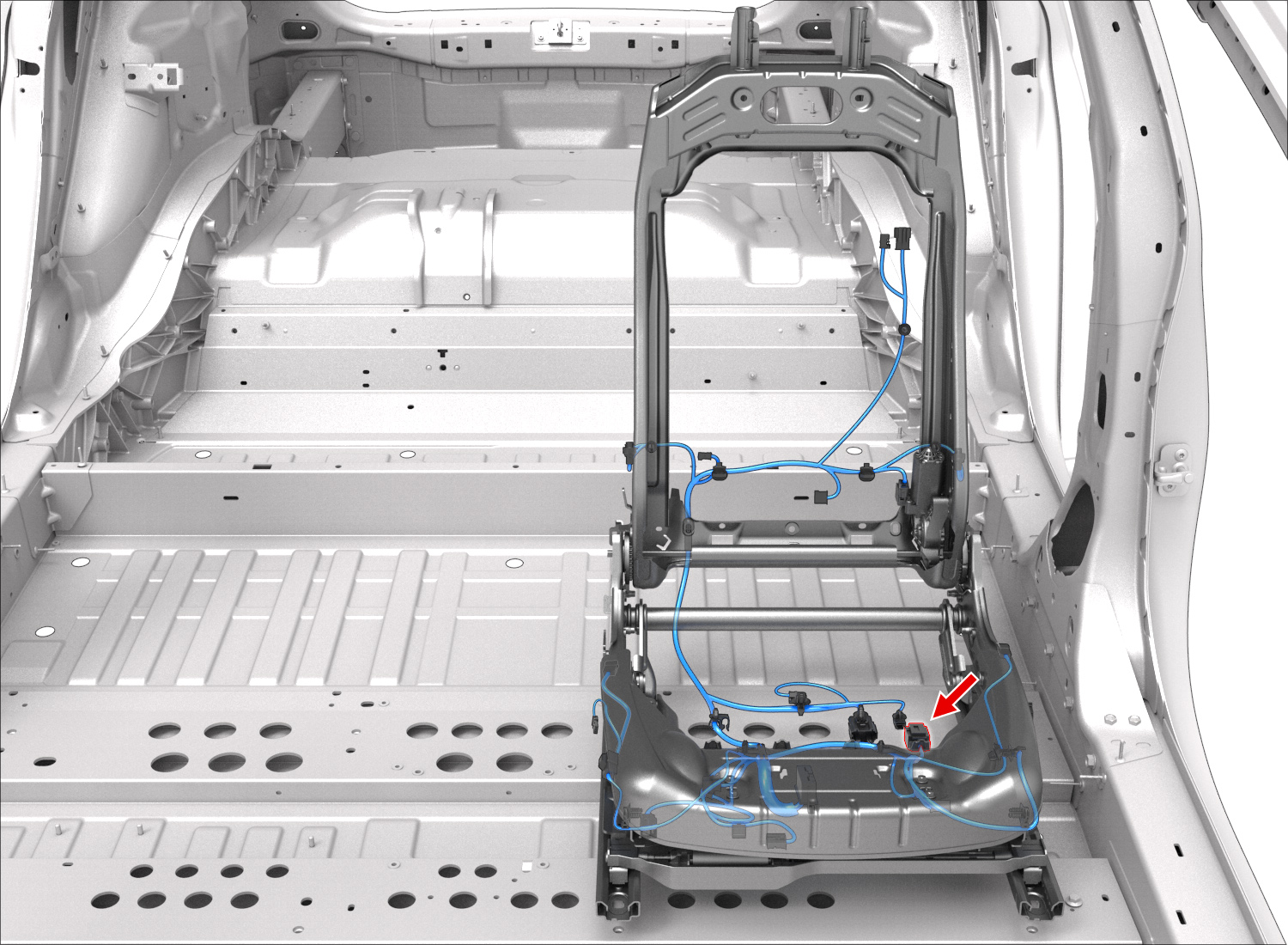

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | JST | SAITS-A03GF-M064 | 0.64FS | RD | 0.50 | JST | A03WS-SAB-N | X910M | 5 |
| 2 | JST | SAITS-A03GF-M064 | 0.64FS | BK | 0.50 | JST | A03WS-SAB-N | X910M | 6 |
| 3 | unused | ||||||||
| 4 | JST | SAITS-A03GF-M064 | 0.64FS | GN | 0.50 | JST | A03WS-SAB-N | X910M | 7 |
